Name: Dual Channel Infrared CO₂ Sensor KGD CM 104 With Fast Data Refresh Frequency 1s
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-CM-104
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Dual Channel Infrared CO₂ Sensor KGD CM 104 With Fast Data Refresh Frequency 1s

Dual-channel Infrared CO₂ Sensor

KGD CM 104 CO₂ Sensor

Fast Data Refresh Frequency CO₂ Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-CM-104

Request A Quote

Product Details

Detection Range:

400 - 5000 (can Be Customized Up To 100000ppm)

Power-on Stabilization Time:

≤ 30s

Data Refresh Frequency:

Detection Accuracy:

±(30ppm + 3% Of The Reading) Under The Environment Of 25°C±2°C And 50%±10%RH

Operating Conditions:

-10°C To 50°C, Below 0 - 95%RH (non-condensing)

Storage Conditions:

-30°C To 70°C, Below 0 - 95%RH (non-condensing)

Highlight:

Dual-channel Infrared CO₂ Sensor

KGD CM 104 CO₂ Sensor

Fast Data Refresh Frequency CO₂ Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

Dual-channel Infrared CO₂ Sensor KGD - CM - 104

Product Introduction

The dual-channel infrared CO₂ sensor KGD - CM - 104 is a dual-channel NDIR sensor. The development of the dual-channel technology is based on the unique absorption characteristics of CO₂ gas. The signal of the measurement channel changes with the change of the CO₂ concentration, while the signal of the reference channel is only affected by the sensor drift. The reference channel provides real-time correction to the measurement channel, ensuring the measurement stability of the sensor during long-term use.

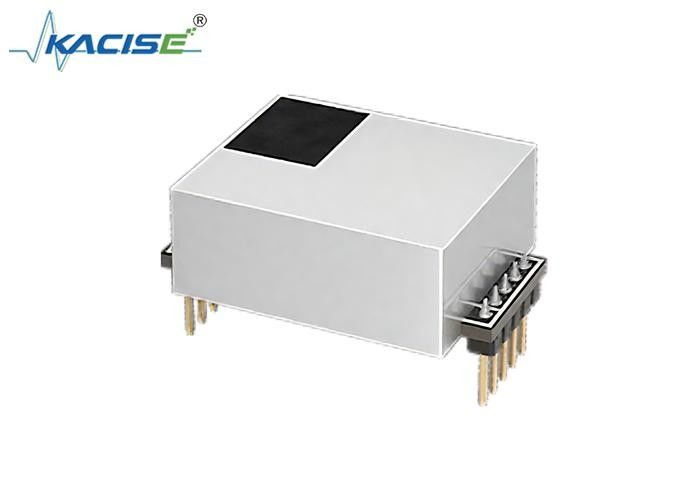

Dual Channel Infrared CO₂ Sensor KGD CM 104 With Fast Data Refresh Frequency 1s 0

Product Features

NDIR core technology.
High detection range, can be customized up to 12000ppm.
Dual-channel design, with higher precision and better stability.
High precision.
Matrix correction within the full range of temperature.
Short preheating time.

Technical Parameters

Detection Range	400 - 5000 (can be customized up to 100000ppm)
Power-on Stabilization Time	≤ 30s
Data Refresh Frequency	1s
Detection Accuracy	±(30ppm + 3% of the reading) under the environment of 25°C±2°C and 50%±10%RH
Operating Conditions	-10°C to 50°C, below 0 - 95%RH (non-condensing)
Storage Conditions	-30°C to 70°C, below 0 - 95%RH (non-condensing)
Average Operating Current	≤45mA@(5V)
Signal Output	① UART_TTL② IIC③ PWM
Product Dimensions	W33H21.7D10(mm) (excluding pins)
