VOC Sensor KGD - VOC - 100

VOC Sensor KGD - VOC - 100

Product Introduction

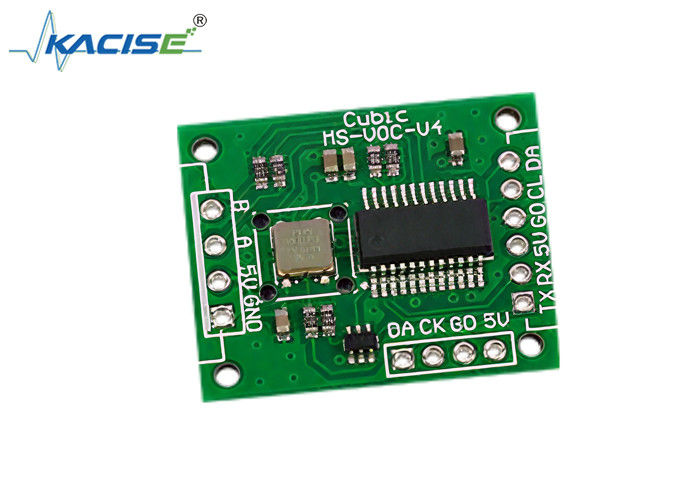

The KGD - VOC - 100 air quality sensor module, based on MEMS gas-sensitive elements, is used to test the content of harmful substances in the ambient air and provides predicted relative equivalent concentration values of harmful substances. The test data is output through three methods: 4-level output, I2C interface communication, or UART interface communication. The surface of the MEMS gas-sensitive element can be protected by a filter membrane and a sealing ring to achieve water and oil resistance. The air quality sensor module can be assembled in the form of pins or sockets according to needs.

Product Features

• Can comprehensively and reliably evaluate the air quality.
• Low power consumption design, less than 100mW.
• Built-in temperature compensation, and humidity compensation can be input.
• Intelligent automatic baseline calibration.
• High sensitivity and fast response.
• The reference value can be stored and reset when the power is off.
• Robust design with excellent long-term stability.
• Highly flexible assembly methods and communication interfaces.

Technical Parameters
