Name: Laser Dust Sensor PM2.5 Sensor with ≤100mA Operating Current, 0 - 1000μg/m³ Detection Range, and PM1.0, PM2.5, PM10 Data Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-116
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

Laser Dust Sensor PM2.5 Sensor with ≤100mA Operating Current, 0 - 1000μg/m³ Detection Range, and PM1.0, PM2.5, PM10 Data Output

PM2.5 Laser Dust Sensor

Operating Current ≤100mA Laser Dust Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-116

Request A Quote

Laser Dust Sensor PM2.5 Sensor with ≤100mA Operating Current, 0 - 1000μg/m³ Detection Range, and PM1.0, PM2.5, PM10 Data Output

Product Details

Power-on Stabilization Time:

≤8s

Data Refresh Frequency:

Operating Conditions:

-10°C To 50°C, 5 - 95%RH

Operating Current:

≤100mA

Detection Range:

0 - 1000μg/m³

Data Output:

PM1.0, PM2.5, PM10

Highlight:

PM2.5 Laser Dust Sensor

Operating Current ≤100mA Laser Dust Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

Laser Dust Sensor KGD - PM - 116

Product Introduction

The KGD - PM - 116 laser dust sensor module adopts the principle of optical scattering, which can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume, and output the mass concentration of particulate matters through mathematical algorithms and scientific calibration.

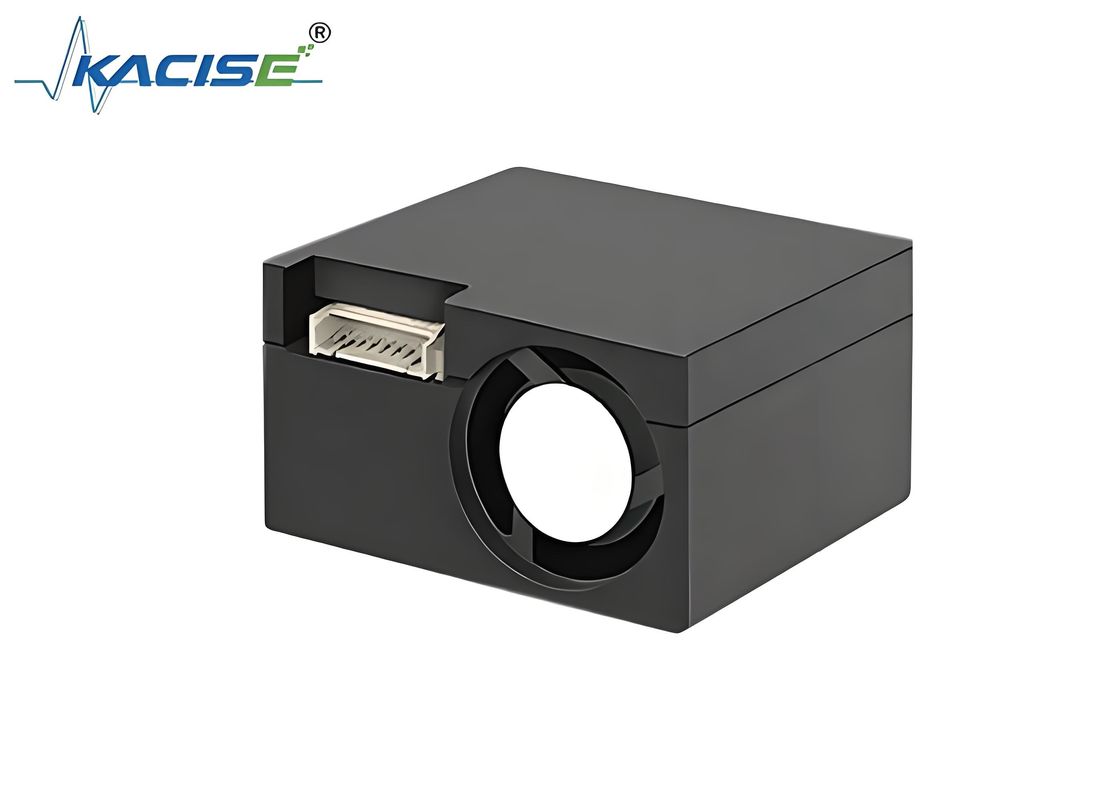

Laser Dust Sensor PM2.5 Sensor with ≤100mA Operating Current, 0 - 1000μg/m³ Detection Range, and PM1.0, PM2.5, PM10 Data Output 0

Product Features

Rapid response and high accuracy.
Built-in shield design, with good anti-interference performance.
Supports four measurement modes: continuous, single-shot, timed, and dynamic.
Built-in alarm function, making it more convenient to troubleshoot application failures.
Air inlet and outlet on the opposite sides.

Technical Parameters

Detection Range	0 - 1000μg/m³
Data Output	PM1.0, PM2.5, PM10
Power-on Stabilization Time	≤8s
Data Refresh Frequency	1s
Detection Accuracy	±15μg/m³ or ±15% of the reading (Under the environmental conditions of 25℃±2℃, 50±10%RH, benchmarked against TSI8530)
Operating Conditions	-10°C to 50°C, 5 - 95%RH
Storage Conditions	-30°C to 60°C, 0 - 95%RH (non-condensing)
Operating Voltage	DC 5.0V±0.1V; with a ripple < 50mV
Operating Current	≤100mA
Standby Current	<20m
Signal Output	① UART_TTL② IIC③ PWM
Sampling Method	Fan type (air inlet and outlet on the opposite sides)
Product Dimensions	W42H35D23.7(mm)
