Name: KGD PM 113N Laser Dust Sensor for Industrial W47.8H36.8D12.1 mm -20°C to 60°C
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-113
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD PM 113N Laser Dust Sensor for Industrial W47.8H36.8D12.1 mm -20°C to 60°C

Industrial PM 113N Laser Dust Sensor

W47.8H36.8D12.1 Laser Dust Sensor

Industrial Laser Dust Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-113

Request A Quote

Product Details

Detection Range:

0 - 1000μg/m³

Data Output:

PM1.0, PM2.5, PM10

Operating Temperature:

-10°C To 50°C

Storage Temperature:

-20°C To 60°C

Communication Method:

①UART ②PWM ③IIC

Product Dimensions:

KGD - PM - 113: W47.8H36.8D11.7 (mm) KGD - PM - 113M: W48H40D12 (mm) KGD - PM - 113N: W47.8H36.8D12.1 (mm)

Highlight:

Industrial PM 113N Laser Dust Sensor

W47.8H36.8D12.1 Laser Dust Sensor

Industrial Laser Dust Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

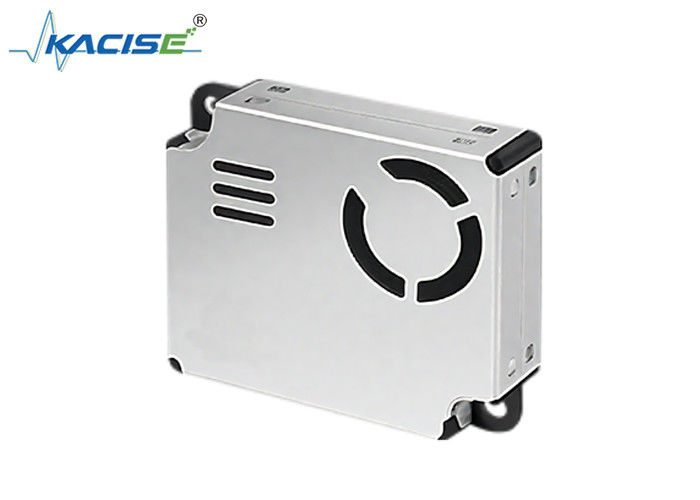

Laser Dust Sensor Series KGD - PM - 113

Product Introduction

The laser dust sensor series KGD - PM - 113 is an ultra - thin laser dust sensor with high temperature resistance and long service life. Based on the principle of optical scattering and combined with KACISE's unique intelligent dust source identification technology, it can accurately detect and calculate the number of suspended particulate matter particles with different particle sizes per unit volume in various environments. Through mathematical algorithms and scientific calibration, it can accurately output the mass concentration of PM2.5. The all - metal shell effectively shields electromagnetic interference, with good anti - interference performance.

KGD PM 113N Laser Dust Sensor for Industrial W47.8H36.8D12.1 mm -20°C to 60°C 0

Product Features

Rapid response and high accuracy.
Metal shielding for anti - interference.
Ultra - thin design of 12mm.
Multiple air inlet and outlet directions to meet different installation requirements.

Technical Parameters

Detection Range	0 - 1000μg/m³
Data Output	PM1.0, PM2.5, PM10
Detection Accuracy	±10μg/m³ or ±10% of the reading (Under the environmental conditions of 25°C±2°C, 50±10%RH, benchmarked against TSI8530)
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Sampling Method	KGD - PM - 113: Fan - type (air inlet and outlet on the same side of the wide surface) KGD - PM - 113M: Fan - type (air inlet and outlet on the same side of the wide surface) KGD - PM - 113N: Fan - type (air inlet and outlet on the same side of the narrow surface)
Communication Method	①UART ②PWM ③IIC
Product Dimensions	KGD - PM - 113: W47.8H36.8D11.7 (mm) KGD - PM - 113M: W48H40D12 (mm) KGD - PM - 113N: W47.8H36.8D12.1 (mm)
