Name: Compact Infrared Dust Sensor KGD PM 111 for Dust Detection in Various Conditions
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-111
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Compact Infrared Dust Sensor KGD PM 111 for Dust Detection in Various Conditions

KGD PM 111 Infrared Dust Sensor

Various Conditions Infrared Dust Sensor

Compact Infrared Dust Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-111

Request A Quote

Product Details

Detection Range:

0 - 1000μg/m³

Data Output:

PM2.5

Power-on Stabilization Time:

≤8s

Operating Conditions:

-20°C To 75°C, 0 - 95%RH (non-condensing)

Storage Conditions:

-40°C To 85°C, 0 - 95%RH (non-condensing)

Operating Voltage:

DC 5.0V±0.2V; With A Ripple < 50mV

Highlight:

KGD PM 111 Infrared Dust Sensor

Various Conditions Infrared Dust Sensor

Compact Infrared Dust Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

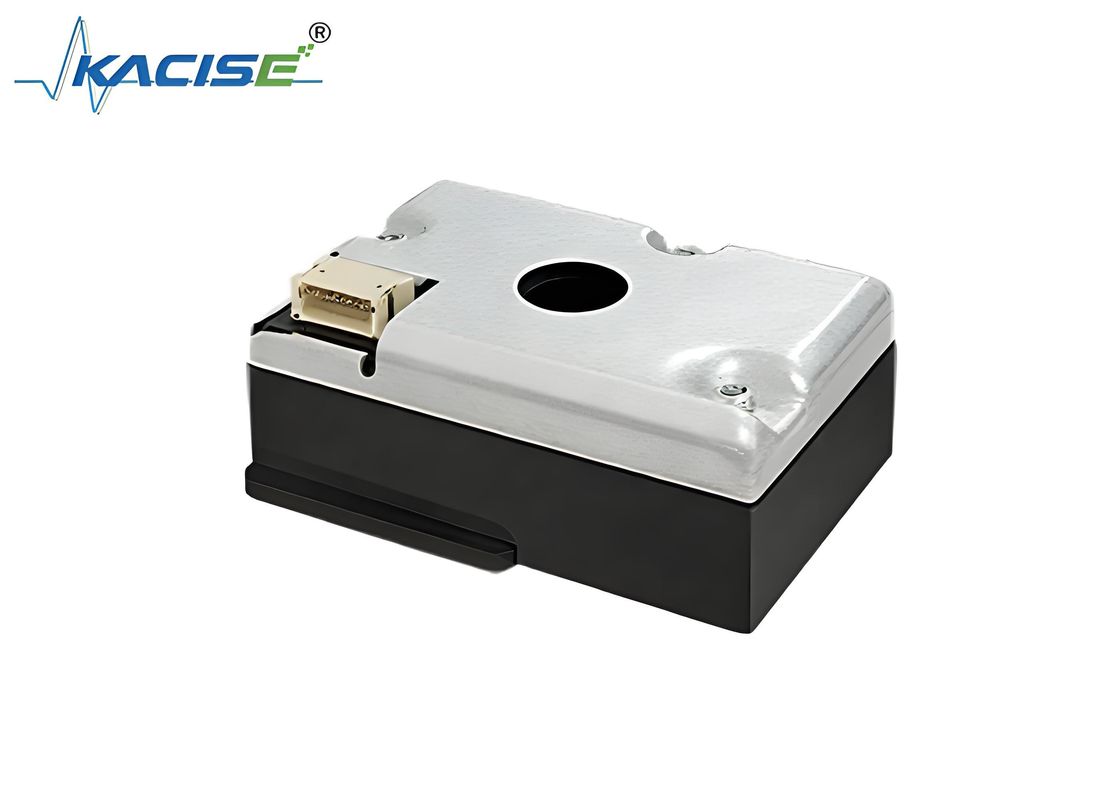

Infrared Dust Sensor KGD - PM - 111

Product Introduction

The KGD - PM - 111 infrared dust sensor adopts the principle of optical scattering and a special optical system design. It can detect the changing trend of the concentration of particulate matter with a particle size of more than 0.3μm in the indoor air. It is calibrated for concentration before leaving the factory and has a built-in temperature compensation function, featuring high accuracy, good sensitivity, fast response speed, and low power consumption.

Compact Infrared Dust Sensor KGD PM 111 for Dust Detection in Various Conditions 0

Product Features

Built-in MCU, calibrated before leaving the factory, and outputs the mass concentration.
Automatic dust accumulation compensation function, reliable and maintenance-free.
Full-range temperature compensation function, with stable and accurate performance.

Technical Parameters

Detection Range	0 - 1000μg/m³
Data Output	PM2.5
Power-on Stabilization Time	≤8s
Detection Accuracy	±20μg/m³ or ±20% of the reading (Under the environmental conditions of 25℃±2℃, 50±10%RH, benchmarked against TSI8530)
Operating Conditions	-20°C to 75°C, 0 - 95%RH (non-condensing)
Storage Conditions	-40°C to 85°C, 0 - 95%RH (non-condensing)
Operating Voltage	DC 5.0V±0.2V; with a ripple < 50mV
Operating Current	≤30mA
Signal Output	① UART_TTL ② PWM
Sampling Method	Diffusion type
Product Dimensions	W46.2H34.1D18(mm)
