Name: Infrared Dust Sensor KGD PM 110 Detection Range 0 500μg/m3 and Low Ripple Operating Voltage for Precise Measurements
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-110
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Infrared Dust Sensor KGD PM 110 Detection Range 0 500μg/m3 and Low Ripple Operating Voltage for Precise Measurements

Precise Measurements Dust Sensor

Low Ripple Operating Voltage Dust Sensor

Infrared Dust Sensor KGD PM 110

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-110

Request A Quote

Product Details

Detection Range:

0 - 500μg/m³

Data Output:

PM2.5

Power-on Stabilization Time:

< 40s

Operating Current:

≤90mA

Operating Voltage:

DC 5V±0.5V; With A Ripple < 50mV

Signal Output:

① UART_TTL ② PWM

Highlight:

Precise Measurements Dust Sensor

Low Ripple Operating Voltage Dust Sensor

Infrared Dust Sensor KGD PM 110

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

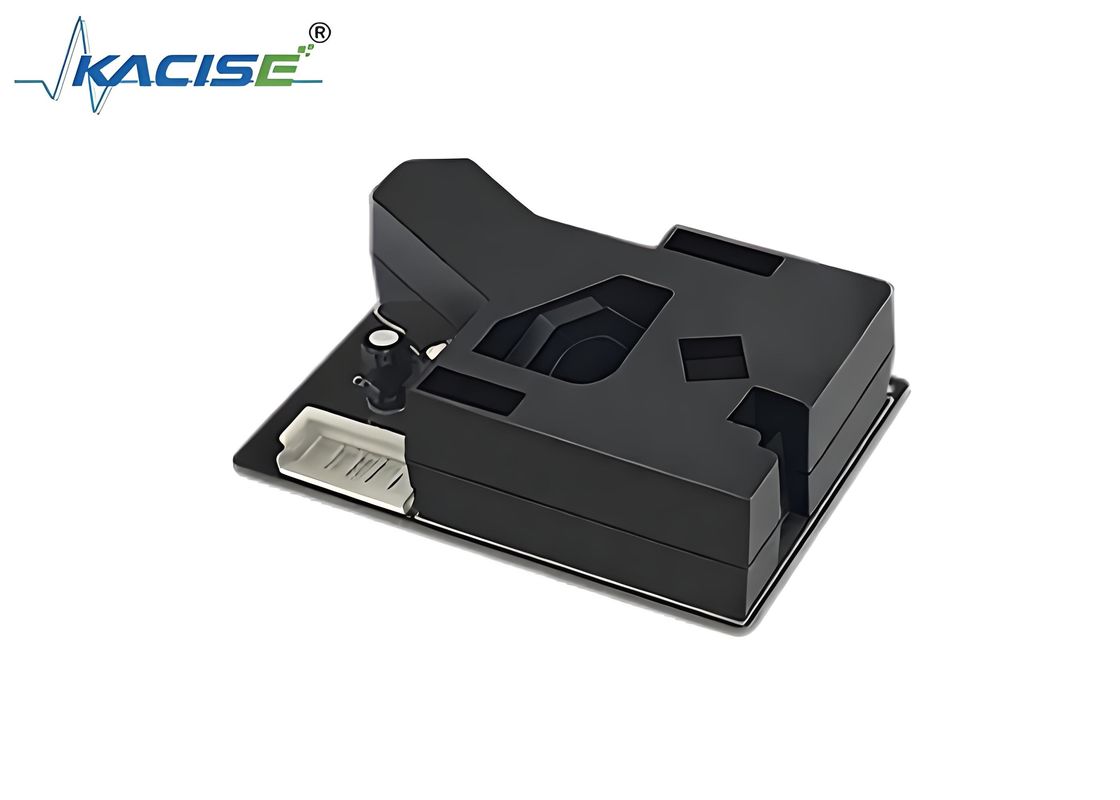

Infrared Dust Sensor KGD - PM - 110

Product Introduction

The KGD - PM - 110 infrared dust sensor adopts the principle of optical scattering, which can detect the changing trend of the concentration of particulate matter with a particle size of more than 1μm in the indoor air. It has a built-in electromagnetic shielding design and a temperature compensation algorithm, and is calibrated for concentration before leaving the factory, showing good consistency and stability.

Infrared Dust Sensor KGD PM 110 Detection Range 0 500μg/m3 and Low Ripple Operating Voltage for Precise Measurements 0

Product Features

Automatic temperature compensation and correction.
Built-in MCU, calibrated and inspected before leaving the factory.
Directly outputs the mass concentration.
Front window design, and the lens can be wiped.

Technical Parameters

Detection Range	0 - 500μg/m³
Data Output	PM2.5
Power-on Stabilization Time	< 40s
Detection Accuracy	±25μg/m³ or ±25% of the reading (Under the environmental conditions of 25℃±2℃, 50±10%RH, benchmarked against Golden Sample)
Operating Conditions	-10°C to 50°C, 0 - 95%RH (non-condensing)
Storage Conditions	-30°C to 60°C, 0 - 95%RH (non-condensing)
Operating Voltage	DC 5V±0.5V; with a ripple < 50mV
Operating Current	≤90mA
Signal Output	① UART_TTL ② PWM
Sampling Method	Heating convection
Product Dimensions	W59H45D20(mm)
