Name: Portable Particle Counter KGD OPC 202 Power-on Stabilization Time ≤8s Detection Range 0 1
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-OPC-202
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Portable Particle Counter KGD OPC 202 Power-on Stabilization Time ≤8s Detection Range 0 1

Power-on Stabilization Time Particle Counter

KGD OPC 202 Particle Counter

Portable Particle Counter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-OPC-202

Request A Quote

Product Details

Number Of Channels:

Multi-channel (0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm)

Counting Efficiency:

50%@0.3μm 100%@≥0.5μm (Under The Environmental Conditions Of 25±2℃, 50±10%RH)

Detection Range:

0 - 1,000,000 Pcs/28.3L

Power-on Stabilization Time:

≤8s

Data Refresh Frequency:

Operating Conditions:

0℃ To 45℃; 0 - 95%RH (non-condensing)

Highlight:

Power-on Stabilization Time Particle Counter

KGD OPC 202 Particle Counter

Portable Particle Counter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

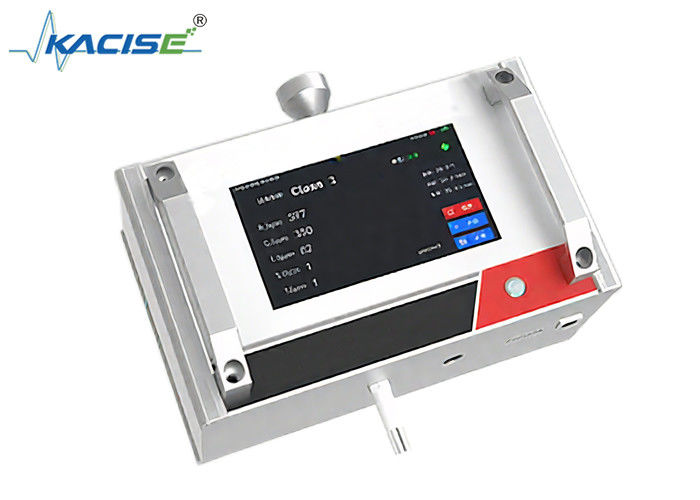

Portable Particle Counter KGD - OPC - 202

Product Introduction

The portable particle counter KGD - OPC - 202 adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume. It is equipped with a built-in dust source intelligent recognition module unique to Sifang Optoelectronic, and has a high gas sampling rate of 28.3L/min. It can simultaneously output the particle numbers of five channels: 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm (the default unit is pcs/28.3L, and it can be switched to pcs/m³). The indication error meets the JJF - 1190 standard.

Portable Particle Counter KGD OPC 202 Power-on Stabilization Time ≤8s Detection Range 0 1 0

Technical Parameters

Number of Channels	Multi-channel (0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm)
Counting Efficiency	50%@0.3μm 100%@≥0.5μm (Under the environmental conditions of 25±2℃, 50±10%RH)
Detection Range	0 - 1,000,000 pcs/28.3L
Power-on Stabilization Time	≤8s
Data Refresh Frequency	1s
Operating Conditions	0℃ to 45℃; 0 - 95%RH (non-condensing)
Storage Conditions	-20℃ to 60℃, 0 - 95%RH (non-condensing)
Operating Voltage	DC 24.0V±15%
Battery Standby Time	＞5h (Working for 2 minutes and sleeping for 28 minutes)
Average Operating Current	≤3A
Communication Interface	RS485 interface (Standard configuration) RJ45 (Standard configuration)
Product Lifespan	≥3 years
Sampling Flow	28.3L/min
Sampling Head	Isokinetic sampling probe
External Sampling Tube	Inner diameter: ф10mm Length: ≤3m
Operating Mode	Adjustable (Default: Working for 2 minutes and sleeping for 28 minutes)
Display	7-inch color screen
Calibration	JJF 1190-2008
