Name: KGD-PM-201 Laser Particle Counting Sensor Data Refresh Frequency 1s Maximum Allowable Concentration 1000000 pcs/28.3L 0.3um
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-201
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD-PM-201 Laser Particle Counting Sensor Data Refresh Frequency 1s Maximum Allowable Concentration 1000000 pcs/28.3L 0.3um

1s Laser Particle Counting Sensor

0.3um Laser Particle Counting Sensor

Place of Origin:

CHINA

Certification:

Model Number:

KGD-PM-201

Request A Quote

Product Details

Detected Particle Size Range:

0.3 - 10μm

Counting Efficiency:

50%@0.3μm100% @>0.45μm (Referenced To Lighthouse Solair 3100, Under The Environmental Conditions Of 25±2℃, 50±10%RH)

Counting Repeatability:

≤5%

Self-cleaning Time:

≤5 Min

Maximum Allowable Operating Concentration:

1000000 Pcs/28.3L@0.3um

Data Refresh Frequency:

Highlight:

1s Laser Particle Counting Sensor

0.3um Laser Particle Counting Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

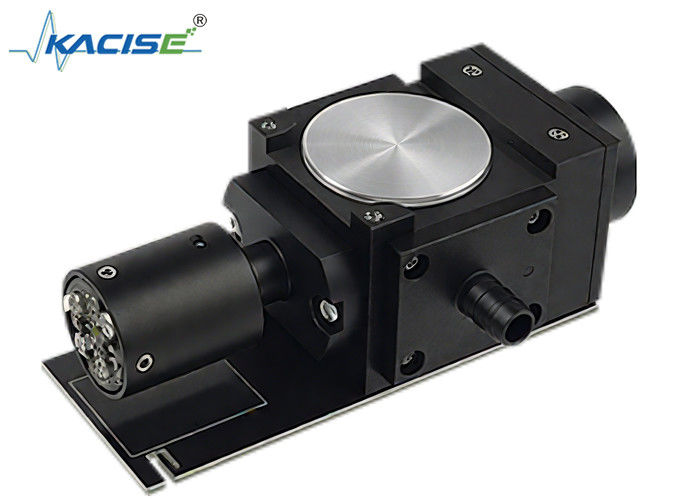

Laser Particle Counting Sensor KGD - PM - 201

Product Introduction

KGD-PM-201 Laser Particle Counting Sensor Data Refresh Frequency 1s Maximum Allowable Concentration 1000000 pcs/28.3L 0.3um 0

The laser particle counting sensor KGD - PM - 201 adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters with different particle sizes in the air per unit volume. It can simultaneously output the particle numbers (pcs/28.3L) of 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm, and the indication error meets the requirements of JJF1190.

Product Features

Can output the numbers of particles with sizes of 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm (pcs/28.3L).
Industrial-grade laser with high reliability.
Small in size and easy to install.
Meets the requirements of JJF 1190.

Technical Parameters

Detected Particle Size Range	0.3 - 10μm
Counting Efficiency	50%@0.3μm100% @>0.45μm (Referenced to Lighthouse Solair 3100, under the environmental conditions of 25±2℃, 50±10%RH)
Counting Repeatability	≤5%
Self-cleaning Time	≤5 min
Maximum Allowable Operating Concentration	1000000 pcs/28.3L@0.3um
Data Refresh Frequency	1s
Operating Conditions	0 - 40℃; 5 - 95%RH (without condensation)
Storage Conditions	-10 - 50℃; 5 - 95%RH (without condensation)
Operating Voltage	DC 5V±0.2V, with a ripple < 100mV
Average Operating Current	<250mA
Communication Interface	UART_TTL (3.3V)
Product Dimensions	W99.2H66D 41.7mm
