Name: Electrolyte Leak Detector KGD-GAS-201
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-GAS-201
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Electrolyte Leak Detector KGD-GAS-201

KGD-GAS-201 Electrolyte Leak Detector

Electrolyte Leak Detector

Electrolyte Leak Detector KGD-GAS-201

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-GAS-201

Request A Quote

Product Details

Range And Resolution:

100ppm, 0.1ppm

Detection Limit:

1ppm

Linear Error:

< ±2% F.S

Repeatability:

< ±1%

Preheating Time:

< 30min

Ambient Temperature:

(5°C~40°C)

Highlight:

KGD-GAS-201 Electrolyte Leak Detector

Electrolyte Leak Detector

Electrolyte Leak Detector KGD-GAS-201

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

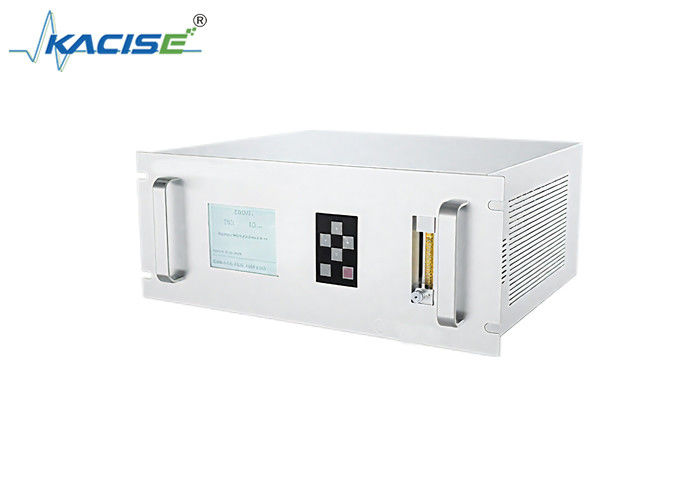

Electrolyte Leak Detector KGD-GAS-201

Electrolyte Leak Detector KGD-GAS-201 0

Product Introduction

The Electrolyte Leak Detector KGD-GAS-201 is independently developed by KACISE. The product features a high-performance probe, a gas chamber treated with a special process, and a built-in constant temperature treatment design, etc. It has the characteristics of high precision, small drift, corrosion resistance, and fast response. Aiming at the application of detecting the leakage of lithium-ion battery electrolyte, it can accurately test the concentration of the gas released by the electrolyte leakage in real time. It provides accurate and rapid judgment for battery detection services and offers a measurement basis for the safety and reliability of production.

Product Features

High sensitivity, with a linear error ≤ 2% F.S
High precision, capable of accurately identifying signal changes of ±1ppm
Good gas selectivity, strong anti-interference ability, preventing misjudgment
Fast response, capable of measuring quickly and accurately and responding in real time

Technical Parameters

Range and Resolution	100ppm, 0.1ppm
Detection Limit	1ppm
Linear Error	< ±2% F.S
Repeatability	< ±1%
Preheating Time	< 30min
Ambient Temperature	(5°C~40°C)
Relative Humidity	0%~95%RH (non-condensing)
Sampling Flow Rate	1.5L/min~3L/min
Power Supply	AC220V, 50Hz
Power Consumption	< 100W
Communication Method	485 (Modbus RTU)/RS232
