KGD-SRH-210 Infrared Carbon Dioxide Sensor

Miniature Infrared Carbon Dioxide Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-SRH-210

Request A Quote

Product Details

Measurement Range:

0 - 5000 Parts Per Million (ppm), 0 - 1% By Volume (Vol), 0 - 2% By Volume (Vol), 0 - 5% By Volume (Vol), 0 - 10% By Volume (Vol), 0 - 20% By Volume (Vol)

Accuracy:

0 - 5000 Ppm: ±200 Ppm; 0 - 1% By Volume (Vol): ±400 Ppm; For 0 - 2% By Volume (Vol), 0 - 5% By Volume (Vol), 0 - 10% By Volume (Vol), 0 - 20% By Volume (Vol): 0 - 1%: ≤ ±0.1% By Volume (Vol); 1% - 5%: ≤ ±(0.05% + 5% Of The Reading); 5% - Measurement Range

Operating Temperature:

-40 To 70 Degrees Celsius, 0 To 95% Relative Humidity (non-condensing)

Response Time:

Less Than 25 Seconds

Dimensions:

Φ2019/Φ2016.6 (millimeters) (excluding Pins)

Explosion-proof Rating:

Ex Ia IIC T4 Ga, And The Explosion-proof Certificate Number Is CITCEx21.0902U

Highlight:

KGD-SRH-210 Infrared Carbon Dioxide Sensor

Miniature Infrared Carbon Dioxide Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

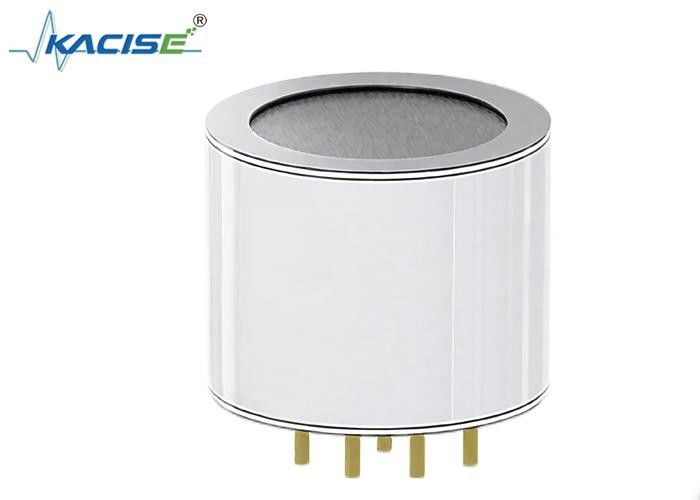

Miniature Infrared Carbon Dioxide Sensor KGD-SRH-210

Product Introduction

The Miniature Infrared Carbon Dioxide Sensor KGD-SRH-210 is an industrial-grade gas sensor used for real-time measurement of changes in gas concentration. It adopts the infrared gas sensor technology (NDIR). Compared with the thermal catalytic and semiconductor principles, it has remarkable features and advantages such as a good signal-to-noise ratio, strong selectivity, immunity to cross-gas interference, high precision, excellent long-term stability, and a long service life. It meets various usage requirements in industrial sites, laboratory measurements, etc.

Miniature Infrared Carbon Dioxide Sensor KGD-SRH-210 0

Product Features

Ensures detection accuracy across the entire temperature and concentration range
Multiple measurement ranges are optional, full-range linearization, and digital output
Fast response, good stability, dustproof and waterproof with an IP64 rating
Abnormal alarm outputs such as high humidity alarms
Meets the explosion-proof rating of Ex ia IIC T4 Ga, and the explosion-proof certificate number is CITCEx21.0902U

Technical Parameters

Measurement Range	0 - 5000 parts per million (ppm), 0 - 1% by volume (Vol), 0 - 2% by volume (Vol), 0 - 5% by volume (Vol), 0 - 10% by volume (Vol), 0 - 20% by volume (Vol)
Accuracy	0 - 5000 ppm: ±200 ppm; 0 - 1% by volume (Vol): ±400 ppm; for 0 - 2% by volume (Vol), 0 - 5% by volume (Vol), 0 - 10% by volume (Vol), 0 - 20% by volume (Vol): 0 - 1%: ≤ ±0.1% by volume (Vol); 1% - 5%: ≤ ±(0.05% + 5% of the reading); 5% - measurement range: ≤ ±6% of the reading
Operating Temperature	-40 to 70 degrees Celsius, 0 to 95% Relative Humidity (non-condensing)
Response Time	Less than 25 seconds
Dimensions	Φ2019/Φ2016.6 (millimeters) (excluding pins)
Explosion-proof Rating	Ex ia IIC T4 Ga, and the explosion-proof certificate number is CITCEx21.0902U
