Laser Methane Sensor KGD-GAS-205

Laser Methane Sensor KGD-GAS-205

KGD-GAS-205 Laser Methane Sensor

KGD-GAS-205 Methane Sensor

Laser Methane Sensor KGD-GAS-205

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-GAS-205

Contact Us
Request A Quote
Laser Methane Sensor KGD-GAS-205
Product Details
Detection Range:
0 To 100% Of The Lower Explosible Limit (LEL)
Detection Accuracy:
±5% Of The Lower Explosible Limit (LEL)
Resolution:
0.1% Of The Lower Explosible Limit (LEL)
Response Time:
T90 Is Less Than 30 Seconds
Operating Temperature:
-25 To 55 Degrees Celsius
Operating Humidity:
0 To 98% Relative Humidity (non-condensing)
Highlight:

KGD-GAS-205 Laser Methane Sensor

,

KGD-GAS-205 Methane Sensor

,

Laser Methane Sensor KGD-GAS-205

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

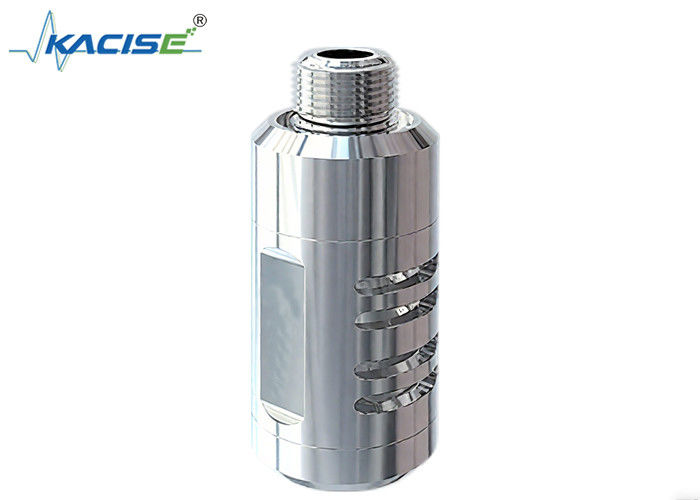

Laser Methane Sensor KGD-GAS-205



Product Introduction

The KGD-GAS-205 series of laser methane sensors is a high-performance gas analysis sensor independently developed by KACISE. Based on the tunable laser absorption spectroscopy technology, it uses a high-performance probe and a gas chamber processed with a special technique. It features high precision, high sensitivity, long service life, and stable performance. By applying a temperature compensation algorithm, it is free from interference of the usage environment and can operate stably under harsh working conditions and in complex gas environments.



Laser Methane Sensor KGD-GAS-205 0

Product Features

  • Fast response speed
  • High measurement accuracy
  • Low power consumption
  • Modular design, easy to integrate
  • Long service life
  • Good selectivity and strong anti-interference ability

Technical Parameters

Detection Range 0 to 100% of the Lower Explosible Limit (LEL)
Detection Accuracy ±5% of the Lower Explosible Limit (LEL)
Resolution 0.1% of the Lower Explosible Limit (LEL)
Response Time T90 is less than 30 seconds
Operating Temperature -25 to 55 degrees Celsius
Operating Humidity 0 to 98% Relative Humidity (non-condensing)
Operating Voltage 5 Volts ± 10%
Operating Current ≤50 milliamps (average operating current), with a maximum value of 150 milliamps
Output Mode Transistor-Transistor Logic (3 Volts)
Protection Level IP66 protection level
Storage Conditions -40 degrees Celsius to 70 degrees Celsius; 0 to 95% Relative Humidity (non-condensing)
External Dimensions With an outer diameter of φ40 and a length of L89.5 (millimeters)
