Name: Online Dust Concentration Tester KGD-OPM-212
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-OPM-212
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Online Dust Concentration Tester KGD-OPM-212

Online Dust Concentration Tester

KGD-OPM-212 Dust Concentration Tester

KGD-OPM-212 Online Dust Concentration Tester

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-OPM-212

Request A Quote

Product Details

Power-on Stabilization Time:

≤8 Seconds

Data Refresh Frequency:

1 Second

Operating Conditions:

-30℃ To 70℃; 0 To 95% Relative Humidity (RH) (non-condensing)

Storage Conditions:

-40℃ To 85℃, 0 To 95% Relative Humidity (RH) (non-condensing)

Operating Voltage:

DC 12V

Average Operating Current:

≤4.5A

Highlight:

Online Dust Concentration Tester

KGD-OPM-212 Dust Concentration Tester

KGD-OPM-212 Online Dust Concentration Tester

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

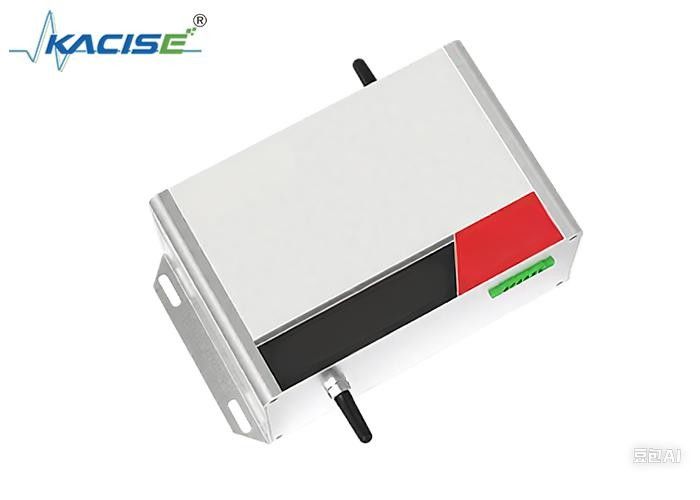

Online Dust Concentration Tester KGD-OPM-212

Product Introduction

The KGD-OPM-212 Online Dust Concentration Tester adopts the principle of optical scattering. It can accurately detect and calculate the number of suspended particulate matters of different particle sizes in the air per unit volume. It is equipped with KACISE's brand-new intelligent dust source identification technology and combined with an air pump with a stable flow rate, enabling the real-time detection and output of the mass concentrations of particulate matters PM1.0, PM2.5, PM10, and TSP.

Online Dust Concentration Tester KGD-OPM-212 0

Product Features

Brand-new intelligent dust source identification technology
Industrial-grade laser, with high reliability
Constant current sampling structure to ensure a constant sampling flow rate
Real-time measurement of the mass concentrations of PM1.0, PM2.5, PM10, and TSP, and the detection data is updated once every second
Operates within a wide temperature range for greater stability

Technical Parameters

Detection Range	0~30mg/m³
Measurement Accuracy of PM1.0 and PM2.5	≤100μg/m³: ±10μg/m³; 100~1000μg/m³: ±10% of the reading
Measurement Accuracy of PM10	≤100μg/m³: ±15μg/m³; 100~1000μg/m³: ±15% of the reading
Measurement Accuracy of TSP	≤100μg/m³: ±20μg/m³; 100~1000μg/m³: ±20% of the reading (Using the traceability system benchmarked with Wuhan National Station. If there are differences in the measured values in other regions, the coefficient calibration is required according to the local distribution of dust particulate matters)
Power-on Stabilization Time	≤8 seconds
Data Refresh Frequency	1 second
Operating Conditions	-30℃ to 70℃; 0 to 95% Relative Humidity (RH) (non-condensing)
Storage Conditions	-40℃ to 85℃, 0 to 95% Relative Humidity (RH) (non-condensing)
Operating Voltage	DC 12V
Average Operating Current	≤4.5A
Communication Interface	RS485 interface
Sampling Flow Rate	1L/min (Default flow rate, which can be customized by customers)
