250VAC/10A Relay Capacity KSF6-O2-201 System Control Cabinet with Resistive Touch Technology

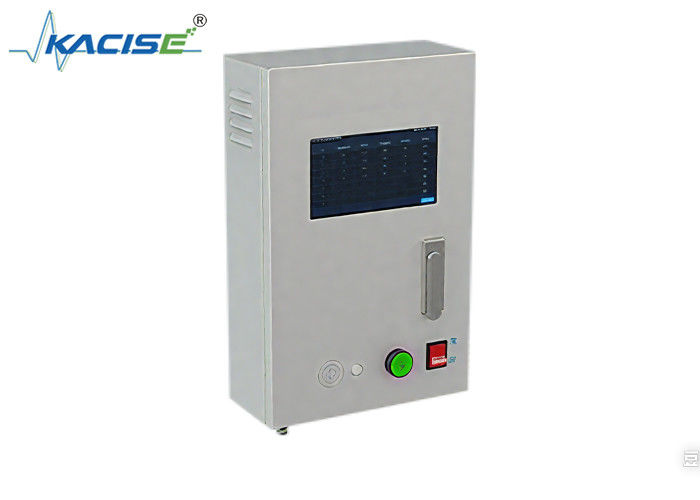

KSF6-O2-201 System Control Cabinet

Product Introduction

The KSF6-O2-201 system control cabinet is a central control device that can monitor in real time the concentrations of sulfur hexafluoride (SF6) and oxygen in the air, as well as the environmental temperature and humidity in the working places of indoor electrical equipment. The device is equipped with a 7-inch true-color touch display screen to show the concentration values of SF6 and O2 at each node. When the values exceed the alarm set values, audible and visual alarms will be triggered. The device has a human body infrared monitoring function. It can upload real-time detection data records and alarm records online through RS485 communication and WIFI communication functions. It is widely used in fields such as the gas analysis industry, industrial process control, environmental detection, and power plants and substations.

Product Features

• 7-inch industrial true-color touch display screen
• Fast response time
• Real human voice broadcast
• Audible and visual alarm functions
• Explosion-proof design
• Can be linked with fans/exhaust fans
• Automatic time calibration
• Wireless/wired communication capabilities
• Equipped with a PIR infrared monitoring function, supporting human body induction, and the induction range is not less than 3M
• Capable of historical data recording and querying, automatic recording of alarm events, and failure records, and the data will not be lost in case of power failure
• High reliability and long service life (＞10 years)
• Small size, compact structure, and easy to install
