Name: Lampblack Concentration Sensor KGD-PM-221
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-PM-221
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Lampblack Concentration Sensor KGD-PM-221

KGD-PM-221 Lampblack Concentration Sensor

Lampblack Concentration Sensor KGD-PM-221

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-PM-221

Request A Quote

Product Details

Detected Object:

Lampblack Concentration

Data Output:

PM2.5

Detection Accuracy:

±30ug/m³ Or ±30% Of The Reading (@25±2℃, 50%±10%RH)

Operating Conditions:

-20℃～+75℃, 0~95%RH (non-condensing)

Storage Conditions:

-40℃～+85℃, 0~95%RH (non-condensing)

Operating Voltage:

DC 5V±0.2V, With A Ripple Of Less Than 100mV

Highlight:

KGD-PM-221 Lampblack Concentration Sensor

Lampblack Concentration Sensor KGD-PM-221

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

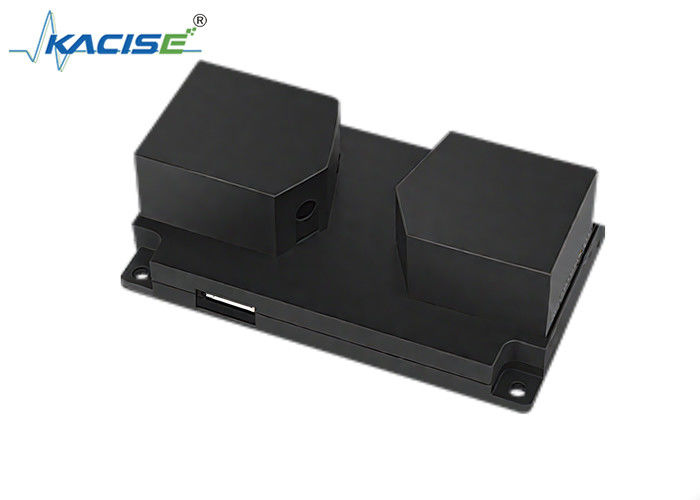

Lampblack Concentration Sensor KGD-PM-221

Product Introduction

The KGD-PM-221 infrared lampblack sensor module adopts the principle of optical scattering and can detect the changing trend of the concentration of particulate matter in the air with particle sizes between 0.3μm and 10μm. The sensor has an infrared light-emitting diode and a photosensitive tube built-in. When the light emitted by the light-emitting diode encounters particulate matter, reflected light will be generated. The photoelectric sensor reflects the concentration of particulate matter in the air by detecting the intensity of the reflected light. The sensor can communicate and output the mass concentration of particulate matter through a serial port signal.

Lampblack Concentration Sensor KGD-PM-221 0

Product Features

Electromagnetic shielding design for anti-interference.
Small in size and high in precision.
Design of pollution-proof air channels for long-term operation.
Low power consumption and wide measurement range.
Short response time.

Technical Parameters

Detected Object	Lampblack concentration
Data Output	PM2.5
Detection Accuracy	±30ug/m³ or ±30% of the reading (@25±2℃, 50%±10%RH)
Operating Conditions	-20℃～+75℃, 0~95%RH (non-condensing)
Storage Conditions	-40℃～+85℃, 0~95%RH (non-condensing)
Operating Voltage	DC 5V±0.2V, with a ripple of less than 100mV
Operating Current	≤30 mA
Communication Interface	UART: 4.5V level; PWM: 4.5V level
Product Dimensions	W66.8H38.8D21.6mm
Product Service Life	≥5 years
