Name: Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-ATRS-319
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319

Battery Thermal Runaway Monitoring Sensor

Monitoring Sensor KGD - ATRS - 319

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-ATRS-319

Request A Quote

Product Details

Data Refresh:

≤1s

Response Time:

T90 < 15s

Output Mode:

CAN/LIN/UART/analog Voltage

Operating Conditions:

-40°C - +85°C; 0 - 90%RH (non - Condensing)

Storage Conditions:

-40°C - 110°C; 0 - 99%RH (non - Condensing)

Supply Voltage:

9 - 16VDC, Standard Voltage +12VDC

Highlight:

Battery Thermal Runaway Monitoring Sensor

Monitoring Sensor KGD - ATRS - 319

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

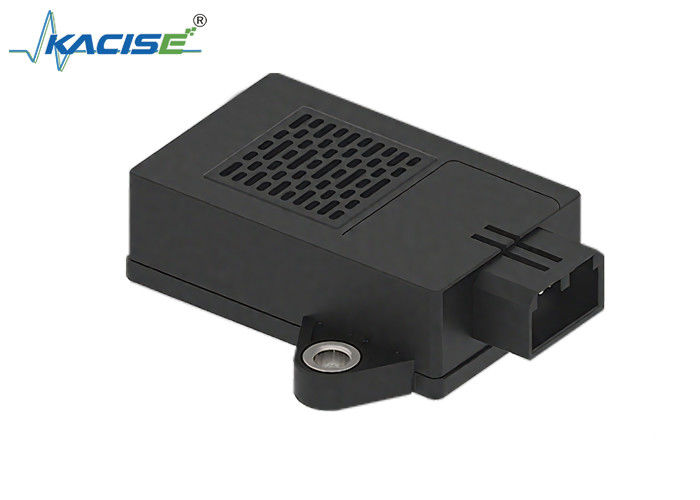

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319

Key Specifications

Data Refresh	≤1s
Response Time	T90 < 15s
Output Mode	CAN/LIN/UART/analog voltage
Operating Conditions	-40°C - +85°C; 0 - 90%RH (non-condensing)
Storage Conditions	-40°C - 110°C; 0 - 99%RH (non-condensing)
Supply Voltage	9 - 16VDC, standard voltage +12VDC

Product Overview

The Battery Thermal Runaway Monitoring Sensor KGD-ATRS-319 effectively monitors CO₂+CO levels, temperature, and pressure indicators prior to battery thermal runaway events. It transmits measurement signals to the BMS via CAN communication, offering precise measurement, rapid response, minimal cross-interference, low power consumption, and extended service life.

Key Features

CO₂ Measurement: Utilizes Non-Dispersive Infrared (NDIR) spectroscopy with 0-10000ppm range, ±(50ppm + 5% reading) accuracy, T90 < 15s response time, no gas cross-interference, μA-level power consumption, and 15-year lifespan.
CO Measurement: Features MEMS-produced metal oxide semiconductor (MOX) sensors with electronic nose technology for selective CO detection, minimal temperature/humidity influence, stable signals, and 15+ year lifespan with silicone gas corrosion resistance.
Vehicle-Grade Design: Robust circuit design withstands harsh automotive environments with IP65 protection rating.
Real-Time Communication: CAN interface supports continuous monitoring with ≤1s data refresh rate.

Technical Specifications

Detection Principle	CO₂: Dual Beam NDIR CO: MOX gas detection Pressure: Piezoresistive Temperature: NTC thermistor
Detection Parameters	CO₂, CO, temperature, pressure (CH₄ + H₂ customizable)
Detection Range	CO₂: 0-10000ppm CO: 1-1000ppm Pressure: 80-120kPa Temperature: -40°C - 125°C
Resolution	1ppm
Detection Accuracy	CO₂: ±(50ppm + 5% reading) CO: ±40ppm or ±30% (whichever is larger) Pressure: ±1kPa Temperature: ±2°C
Average Operating Current	≤100mA @+12VDC (low-power mode available)
Standby Current	≤100μA in sleep mode
