Name: KGD-MQ-528 Integrated Biogas Analysis System with CH4 Measurement Range 0-100% and H2S Resolution 1ppm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-MQ-528
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD-MQ-528 Integrated Biogas Analysis System with CH4 Measurement Range 0-100% and H2S Resolution 1ppm

CH4 Measurement Range Biogas Analysis System

Integrated Biogas Analysis System

H2S Resolution Biogas Analysis System

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-MQ-528

Request A Quote

Product Details

Measured Components:

CH4, CO2, H2S, O2

Measurement Principle:

CH4/CO2: NDIR; H2S/O2: ECD

Measurement Range:

CH4: (0 - 100)%; CO2: (0 - 50)%; H2S: (0 - 9999) Ppm; O2: (0 - 25)%

Accuracy:

CH4/CO2: ±1%F.S.; H2S/O2: ±2%F.S.

Resolution:

CH4/CO2/O2: 0.01%; H2S: 1ppm

Repeatability:

CH4/CO2: 0.5%; H2S/O2: 1%

Highlight:

CH4 Measurement Range Biogas Analysis System

Integrated Biogas Analysis System

H2S Resolution Biogas Analysis System

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

KGD-MQ-528 Integrated Biogas Analysis System with CH4 Measurement Range 0-100% and H2S Resolution 1ppm

Product Attributes

Measured Components	CH4, CO2, H2S, O2
Measurement Principle	CH4/CO2: NDIR; H2S/O2: ECD
Measurement Range	CH4: (0 - 100)%; CO2: (0 - 50)%; H2S: (0 - 9999) ppm; O2: (0 - 25)%
Accuracy	CH4/CO2: ±1%F.S.; H2S/O2: ±2%F.S.
Resolution	CH4/CO2/O2: 0.01%; H2S: 1ppm
Repeatability	CH4/CO2: 0.5%; H2S/O2: 1%

Product Description

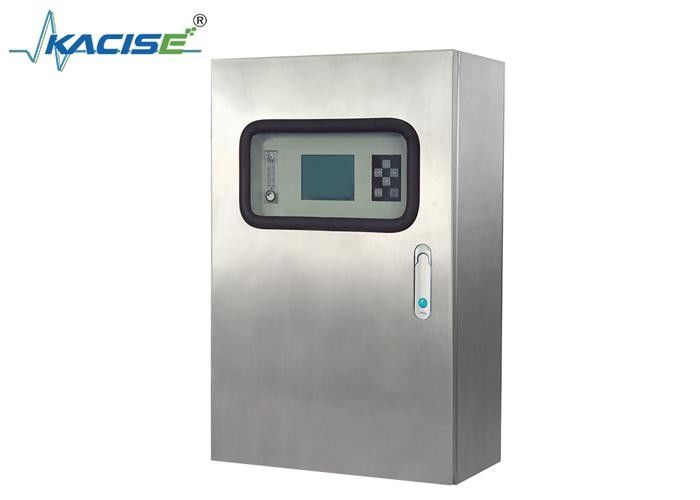

KGD-MQ-528 Integrated Biogas Analysis System

The KGD-MQ-528 Integrated Biogas Analysis System uses non-dispersive infrared gas analysis technology with independent intellectual property rights and long-life electrochemical sensing technology. It can continuously monitor the volume concentrations of gases such as CH4, CO2, H2S, and O2 in biogas components in real-time and online. The system can be optionally equipped with a pretreatment unit to achieve multi-channel sampling and water-removal functions, adapting to various biogas working conditions on-site.

Product Features

High Measurement Accuracy and Long Service Life - Simultaneously measures CH4, CO2, H2S, and O2 concentrations online with no cross-interference. Patented H2S sensor protection extends sensor life.
Stable Working Performance - Dual-channel sensor design with high stability and online self-diagnosis capability.
Convenient Data Management - Multiple interface options for data transmission to centralized control systems.
High Degree of Automation - Maintenance-free pretreatment device enables stable, continuous operation without manual attendance.
Simple Operation and No Consumables - No disassembly, installation, or chemical reagents required compared to traditional analysis methods.

Technical Parameters

Parameter	Details
Measured Components	CH4, CO2, H2S, O2
Measurement Principle	CH4/CO2: NDIR; H2S/O2: ECD
Measurement Range	CH4: (0 - 100)%; CO2: (0 - 50)%; H2S: (0 - 9999) ppm; O2: (0 - 25)%
Accuracy	CH4/CO2: ±1%F.S.; H2S/O2: ±2%F.S.
Resolution	CH4/CO2/O2: 0.01%; H2S: 1ppm
Repeatability	CH4/CO2: 0.5%; H2S/O2: 1%
Response Time	T90≤60S (NDIR)
Optimal Flow Rate	(0.7 - 1.2) L/min
Inlet Gas Pressure	(2 - 50) kPa
Gas Requirements	Dust-free, water-free, oil-free
Communication	RS-485/RS-232, (4 - 20) mA
Power Supply	AC220V, 50Hz
Functional Configuration	Built-in zero-adjustment air pump, automatic drainage, stainless-steel protective cabinet, corrosion-resistant components, system temperature control, self-diagnosis capability
