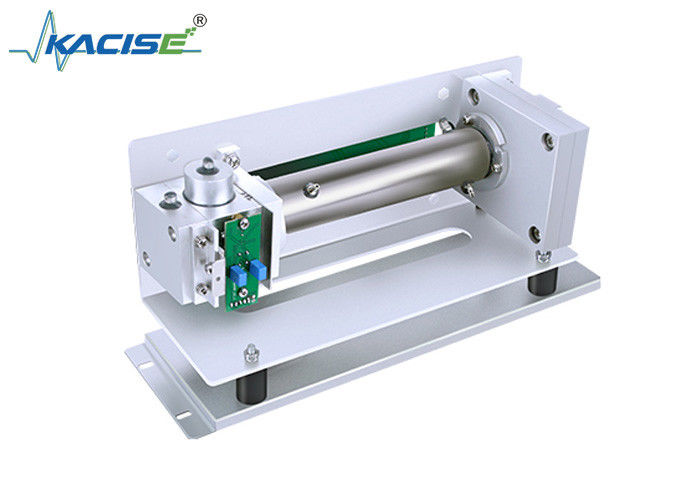

KGD - WQ - 529 Micro - Flow Low - Range Infrared Gas Sensor Module

KGD - WQ - 529 Micro - flow Low - range Infrared Gas Sensor Module

Product Introduction

The KGD - WQ - 529 series micro - flow low - range infrared gas sensor module adopts micro - flow infrared dual - gas - chamber sensor technology. The gas chamber consists of a measured gas chamber and a reference gas chamber. After the infrared light source irradiates the measured gas and the reference gas respectively, the signal waveforms formed in the micro - flow infrared sensor are processed by the signal processing system, and the concentration of the measured gas is obtained through the ratio. The KGD - WQ - 529 adopts a dual - gas - chamber structure and a special filter, which solves problems such as environmental temperature instability and aging of electronic components. It improves the accuracy, stability, and anti - interference ability of measurement results, enabling ultra - low - range gas measurement.

Product Features

• Micro - flow infrared sensor technology.
• The gas chamber adopts a dual - chamber design of measurement and reference, with high accuracy.
• Modular sensor design for easy integration.
• Automatic temperature and pressure compensation.

Technical Parameters
