Infrared Gas Sensor Module KGD - YQ - 532 for Detecting Background Gases

Infrared Gas Sensor Module KGD - YQ - 532 for Detecting Background Gases

Background Gases Gas Sensor Module

Infrared Gas Sensor Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-YQ-532

Chat Now
Chat Now
Infrared Gas Sensor Module KGD - YQ - 532 for Detecting Background Gases
Product Details
Linear Error:
≤ ± 1%F.S.
Response Time:
≤ 8s@0.7L/min
Repeatability:
≤ 1%
Stability:
≤ ± 2%F.S./24h
Heating Constant Temperature:
50°C
Pre - Heating Time:
< 30min
Highlight:

Background Gases Gas Sensor Module

,

Infrared Gas Sensor Module

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Chat Now
Product Description

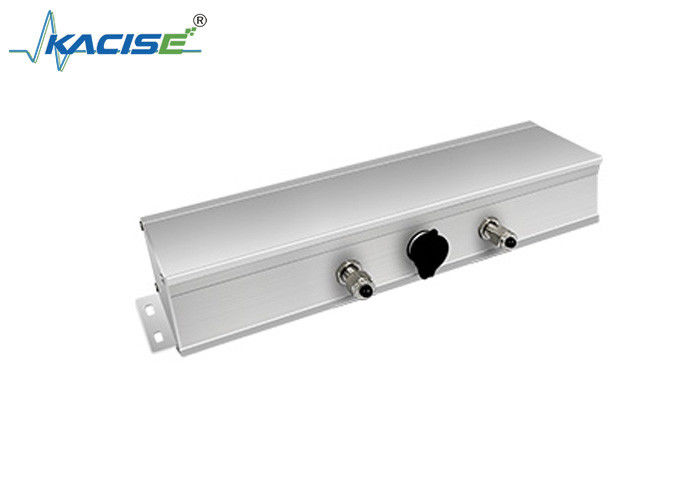

Infrared Gas Sensor Module KGD - YQ - 532 for Detecting Background Gases

Product Introduction

The KGD - YQ - 532 Infrared Gas Sensor Module is a high - performance gas analysis sensor. It uses a high - performance probe and a special process to detect the constant temperature of the gas cell. It has the characteristics of high accuracy, small drift, and fast response. It can simultaneously measure the concentrations of CO/CO₂ gases without mutual interference. It is especially suitable for working conditions where the background gas is complex and accurate detection of multiple components is required.,

Infrared Gas Sensor Module KGD - YQ - 532 for Detecting Background Gases 0

Product Features

  • Excellent performance with a linear error of less than 1%F.S.
  • Constant temperature control reduces the influence of ambient temperature and has strong stability.
  • Optimized absorption peaks and interference compensation algorithms result in small cross - interference.
  • Modular design for easy integration.

Technical Parameters

Measurement Components CO, CO₂
Range and Resolution CO: 1000ppm, 0.1ppm
CO₂: 20Vol.%, 0.01Vol.%
Detection Limit CO: 0.5%F.S.
CO₂: 0.1%F.S.
Linear Error ≤ ± 1%F.S.
Response Time ≤ 8s@0.7L/min
Repeatability ≤ 1%
Stability ≤ ± 2%F.S./24h
Heating Constant Temperature 50°C
Pre - heating Time < 30min
Ambient Temperature (5 - 40) °C
Relative Humidity 0% - 95%rel (Non - condensing)
Atmospheric Pressure (86 - 115) kPa
Sample Gas Flow 0.2mL/min - 1L/min
Communication Method Modbus485/RTU, RS232
Power Supply Voltage 12VDC ± 0.2V/4A
Power Consumption 800mW/2max36W when heating
