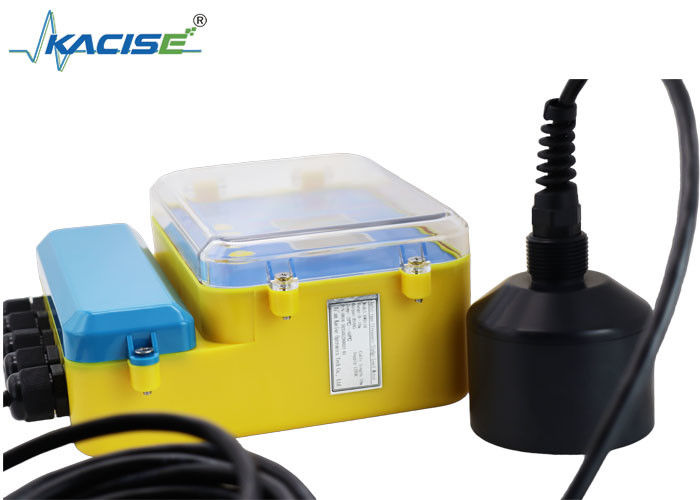

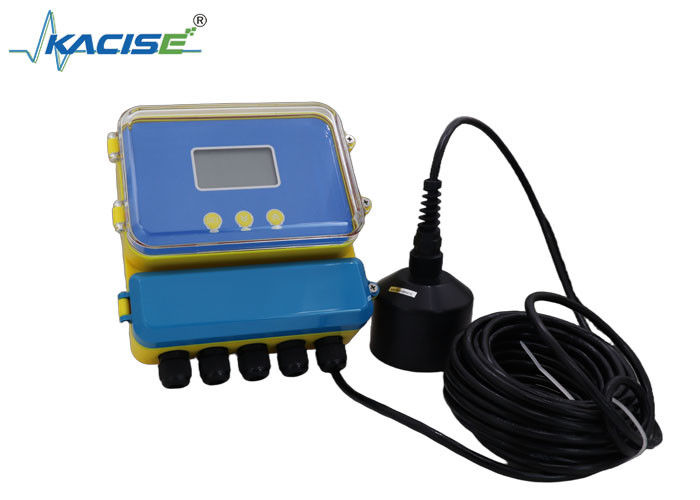

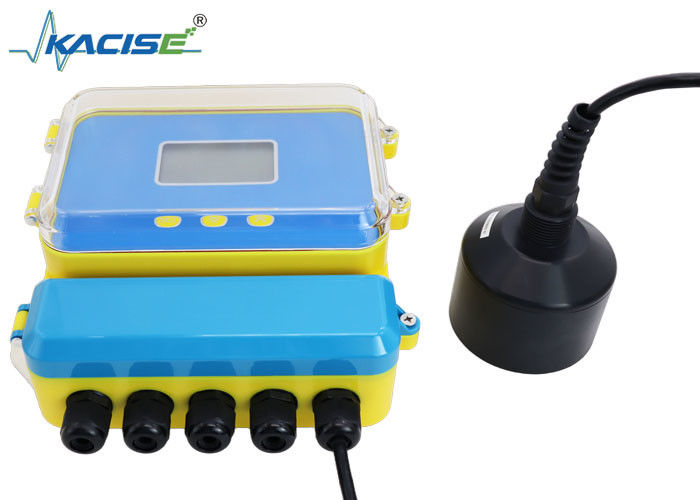

Name: KWD110 Split Ultrasonic Depth Sounder 60 Meter Range And Chinese LCD Display For Accurate Depth Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD110
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

KWD110 Split Ultrasonic Depth Sounder 60 Meter Range And Chinese LCD Display For Accurate Depth Measurement

Accurate Ultrasonic Depth Sounder

KWD110 Ultrasonic Depth Sounder

60 Meter Range Ultrasonic Depth Sounder

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KWD110

Request A Quote

Product Details

Range:

The Conventional Measuring Range Is 5 Meters, 10 Meters, 15 Meters, 20 Meters, And Can Be Customized To 30 Meters, 40 Meters, 50 Meters, 60 Meters, 70 Meters And Further Special Measuring Ranges

Measurement Accuracy:

1%~3%

Resolution:

5mm Or 0.5% (the Larger One)

Display:

Chinese LCD Display

Analog Output:

4~20mA/750Ω Load

Relay Output:

Single Channel Is 2 Groups Of AC 250V/8A Or DC 30V/5A, State Programmable

Highlight:

Accurate Ultrasonic Depth Sounder

KWD110 Ultrasonic Depth Sounder

60 Meter Range Ultrasonic Depth Sounder

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Underwater Distance Sensor KUS-W36 Accurate Measurement Output and IP68 Protection Level for Precise Distance Measurement

Get Best Price

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

86--17719566736

Contact Now

Product Description

KWD110 Split Ultrasonic Depth Sounder - 60 Meter Range with Chinese LCD Display

Key Features

Customizable measuring range up to 60 meters (standard 5-20m)
High measurement accuracy of 1%-3%
Clear Chinese LCD display for easy reading
Multiple output options: 4~20mA analog and relay outputs
IP65/IP68 protection rating for harsh environments
Flexible power supply options (220V AC or 24VDC)

Product Overview

The KWD110 Split Ultrasonic Depth Sounder is a reliable, cost-effective solution for accurate depth measurement in liquid applications. This contact-type instrument uses ultrasonic technology through liquid propagation, offering easy installation and maintenance.

Technical Specifications

Attribute	Specification
Range	Standard: 5m, 10m, 15m, 20m Customizable: 30m, 40m, 50m, 60m, 70m
Measurement Accuracy	1%-3%
Resolution	5mm or 0.5% (whichever is larger)
Display	Chinese LCD
Analog Output	4~20mA/750Ω load
Relay Output	2 groups of AC 250V/8A or DC 30V/5A (state programmable)
Power Supply	Standard: 220V AC ±15% 50Hz Optional: 24VDC 120mA Custom: 12VDC or battery
Temperature Range	Display: -20°C to +60°C Probe: -20°C to +80°C
Communication	Optional 485, 232 communication (manufacturer protocol)
Protection Level	Display: IP65 Probe: IP68
Probe Cable	Standard: 10m Maximum: 100m

Installation & Operation

Initial Setup

Before operation, the ultrasonic depth sounder requires configuration based on installation environment parameters including measurement range, zero point, full range, and working conditions.

Important Notes

Do not modify probe selection, parameter calibration, or algorithm settings without professional guidance
Probe installation varies based on selected measuring range and probe type
Ensure proper environmental conditions for optimal performance
