Name: KMC2000MICRO DIFFERENTIAL PRESSURE GAUGE
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMC2000
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

KMC2000MICRO DIFFERENTIAL PRESSURE GAUGE

DIFFERENTIAL PRESSURE GAUGE

KMC2000MICRO Pressure GAUGE

Brand Name:

KACISE

Certification:

Model Number:

KMC2000

Request A Quote

Product Details

Product Name:

Micro Differential Gauge

Product Model:

MC2000

Range Ability:

0~30Pa

Accuracy:

±2.5%FS

Highlight:

30PA Differential Air Pressure Gauge

Rated Pressure:

-68~100Kpa

Highlight:

DIFFERENTIAL PRESSURE GAUGE

KMC2000MICRO Pressure GAUGE

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 24CE Series Miniature Safety Switch with IP66 Sealed Housing SIL3 Safety Level and Positive Opening Contacts

Get Best Price

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Get Best Price

Dual Head Cable Pull Safety Switch with IP67 Sealing NEMA 1 4 12 13 Rated for Long Cable Span Emergency Stop

Get Best Price

GKN Series Key-Operated Safety Interlock Switch with Three Conduit Entries 20 mm or 0.5-14 NPT and 3NC or 2NC/1NO Contacts

Get Best Price

Contact Now

Product Description

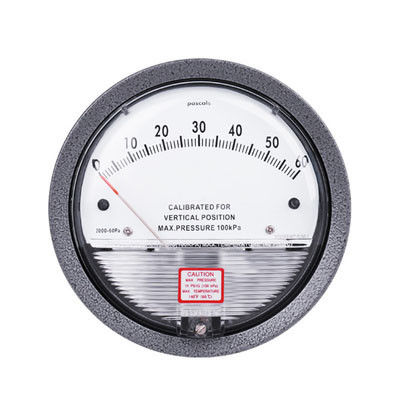

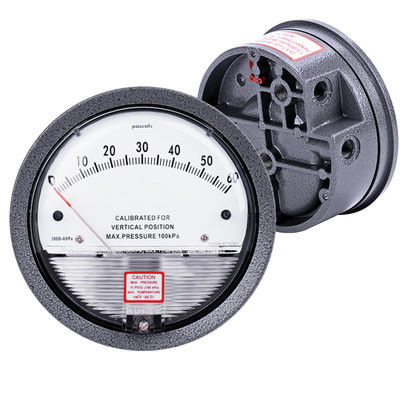

KMC2000MICRO DIFFERENTIAL PRESSURE GAUGE

Key Specifications

Product Name	Micro Differential Gauge
Model Number	MC2000
Measurement Range	0~30Pa
Accuracy	±2.5%FS
Rated Pressure	-68~100Kpa

Product Overview

The KMC2000 Micro Differential Pressure Gauge delivers exceptional performance with a precise measurement range of 0-30PA. This industrial-grade instrument combines rapid response with durable construction for reliable pressure monitoring in demanding environments.

Advanced Features

Ultra-Fast Response: Features an ultra-thin aluminum hollow seamless tube that minimizes response time and eliminates hysteresis for immediate, accurate readings.
Industrial-Grade Durability: High-strength PC cover provides clear visibility while offering superior impact protection. All-aluminum investment casting ensures a robust, reliable shell.

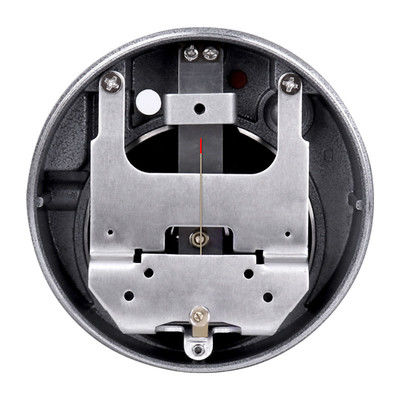

Frictionless Magnetic Transmission: Advanced internal magnetic structure eliminates gear friction, enhancing shock resistance and extending service life.
Versatile Measurement: Available in 88 different ranges (0-30Pa to 0-30KPa) with both metric and imperial units to suit various applications.
Precision Engineering: Frictionless magnetic components enable precise measurement of micro-pressure air and non-corrosive gases without wear or hysteresis issues.

Technical Specifications

Model	2000 Micro Differential Pressure Meter
Measured Medium	Air or compatible non-corrosive gases
Accuracy	±2.5%FS
Operating Temperature	-7°C to 60°C
Rated Pressure	-68~100Kpa
Process Connection	1/8"
Housing Material	Die cast aluminum or ABS plastic with nylon
Weight	500g
Standard Equipment	2 1/8" NPT head, 2 1/8" thread rubber hose connector, three embedded mounting screws
