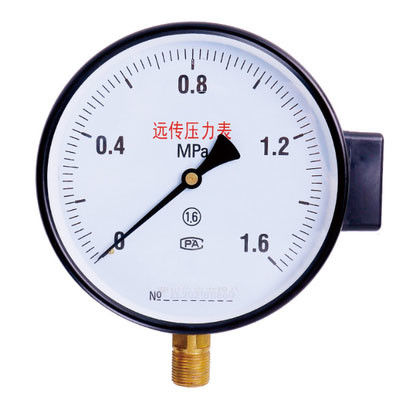

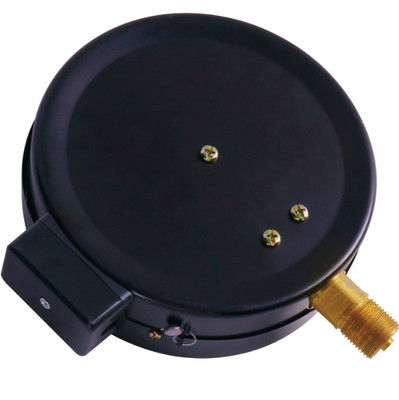

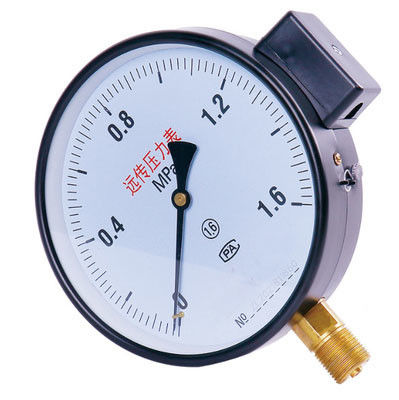

KMC-YTZ150 Resistance Far Transmission Pressure Gauge

 KMC-YTZ150 Resistance Far Transmission Pressure Gauge

Product Introduction

The  KMC-YTZ150 Resistance Far Transmission Pressure Gauge is a high-precision instrument designed for remote pressure monitoring in industrial systems. Combining a spring tube pressure gauge with a potentiometer-type transmitter, this gauge converts mechanical pressure changes into electrical resistance signals for long-distance transmission. With a measurement range of 0-60MPa and an accuracy class of 1.6, it is ideal for measuring non-corrosive liquid, steam, and gas media in applications requiring both local indication and remote monitoring.

Key Features

• Dual-Function Design: Integrates local pressure indication via a pointer with remote transmission of resistance signals for centralized control.
• Resistance Transmission Technology: Potentiometer-type transmitter converts pressure into electrical resistance, enabling reliable far-field data transmission.
• Wide Measurement Range: 0-60MPa capacity for versatile use in high-pressure industrial systems.
• Sturdy Construction: Suitable for non-corrosive media (compatible with steel and copper alloys).
• Temperature Resilience: Operates in harsh environments from -40°C to 60°C.
• Standardized Connection: M20×1.5 thread for easy installation in existing systems.

Technical Specifications
