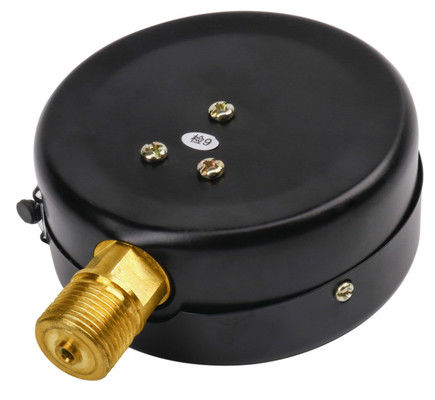

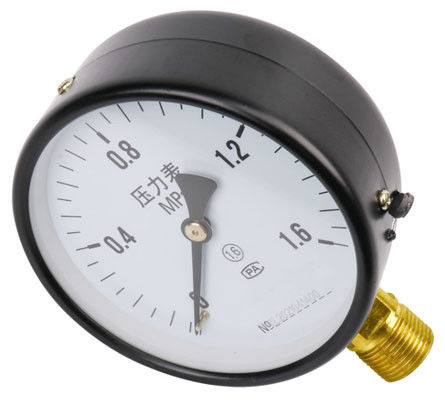

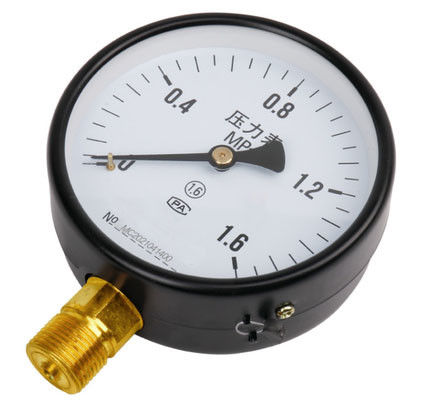

KMC-Y100 Industrial Pressure Gauge - 100mm Dial, M20×1.5 Radial Copper Connection, Iron Shell

 KMC-Y100 Industrial Pressure Gauge - 100mm Dial, M20×1.5 Radial Copper Connection, Iron Shell

Product Introduction

The KMC-00 Industrial Pressure Gauge is a robust measuring instrument designed for reliable pressure monitoring in industrial systems. Featuring a 100mm dial with a safety glass window, this gauge provides clear readings of pressure ranges from 0 to 60mPa with ±1.6% accuracy. The radial M20×1.5 copper joint ensures secure installation, while the iron shell housing offers durability in harsh environments. Engineered with a Bourdon tube mechanism, it effectively measures gauge pressure by comparing fluid pressure against atmospheric pressure, making it suitable for applications in pipelines, machinery, and industrial processes.

Key Features

Precision Measurement

±1.6% full-scale accuracy for reliable pressure readings across 0–60mPa range.

Durable Construction

Iron shell housing with corrosion-resistant coating for long-term use in industrial environments.

Safety glass window prevents shattering in case of internal pressure surges.

Easy Installation

Radial M20×1.5 copper thread connection for quick integration into pipelines and systems.

Wide Temperature Compatibility

Operates stably in temperatures from -40°C to 70°C, suitable for diverse environments.

Safety Design

Overflow hole releases internal pressure in case of Bourdon tube failure, preventing panel damage.

Customizable Options

Optional features include vibration-resistant (V), heat-resistant (H), or steam-compatible (M) models.

Alternative pointer types and non-reflective glass panels available.

Pulsation Protection

Optional throttle valve at the pressure inlet reduces measurement interference from fluid pulsation.

Versatile Application

Suitable for measuring gas/liquid pressure in pipelines, boilers, compressors, and mechanical systems.

Technical Specifications

Dial Diameter 100mm

Pressure Range 0 ~ 60mPa

Accuracy ±1.6% of full scale

Connection Thread M20×1.5 (radial)

Housing Material Iron shell

Window Material Safety glass

Operating Temperature -40°C ~ 70°C

Overpressure Protection Overflow hole design
