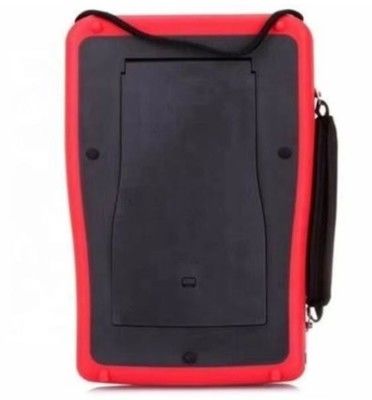

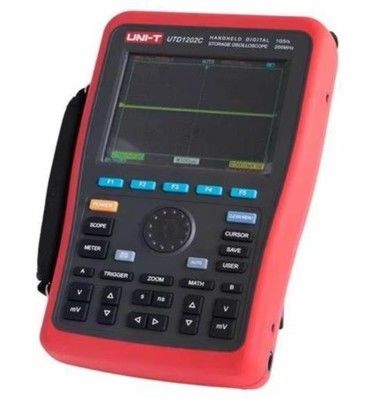

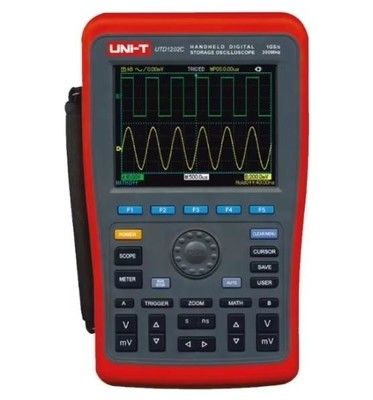

UNI-T UTD1202C Pro Handheld Digital Storage Oscilloscope - 200MHz, Dual Channel, Color Display

UNI-T UTD1202C Pro Handheld Digital Storage Oscilloscope - 200MHz, Dual Channel, Color Display

Product Introduction

The UNI-T UTD1202C Pro is a versatile, portable test instrument designed for professionals requiring precision signal analysis in field and mobile environments. Combining a 200MHz digital storage oscilloscope, waveform generator, and multimeter in one compact device, it delivers comprehensive testing capabilities with intuitive controls and a vibrant color display. Ideal for troubleshooting, maintenance, and on-site diagnostics, this battery-powered oscilloscope offers traditional knob-based operation for quick adjustments and clear visualization of time-based voltage signals.

Key Features

Triple-Function Integration

200MHz bandwidth oscilloscope with dual channels

Built-in waveform generator for signal stimulation

Multimeter functionality for voltage, current, and resistance measurements

Portable Design

Compact 268×168×60mm form factor, weighing just 1.8kg

Rechargeable battery operation for fieldwork and remote testing

User-Friendly Interface

Color display for clear signal visualization

Traditional scaling and trace position knobs for intuitive operation

Minimal learning curve for experienced oscilloscope users

Safety & Performance

Measures up to 700V AC and 600mA DC

Robust construction for industrial environments

Connectivity

USB interface for data transfer and remote control

Compatible with PC software for advanced analysis

Technical Specifications

Bandwidth:200MHz

Channels:2

Max. AC Voltage:700V

Max. DC Current:600mA

Display:Color LCD

Dimensions:268×168×60mm

Weight:1.8kg

Power:Rechargeable battery

Interface:USB
