Name: Dwyer Magnehelic 2300-60PA Differential Pressure Gage with 60-0-60 Pa Range, ±2% Accuracy, and IP67 Enclosure
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 2300-60pa
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Dwyer Magnehelic 2300-60PA Differential Pressure Gage with 60-0-60 Pa Range, ±2% Accuracy, and IP67 Enclosure

Magnehelic Differential Pressure Gage

2300-60PA Magnehelic Differential Pressure Gage

Brand Name:

Dwyer

Certification:

Model Number:

2300-60pa

Request A Quote

Product Details

Warranty:

1 Year

Customized Support:

OEM, ODM, OBM

Pressure Rating:

15 PSI (1.03 Bar)

Ambient Temperature:

-7 ~ 60 °C

Packaging Details:

Carton

Supply Ability:

1000 Piece/Pieces Per Month

Highlight:

Magnehelic Differential Pressure Gage

2300-60PA Magnehelic Differential Pressure Gage

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

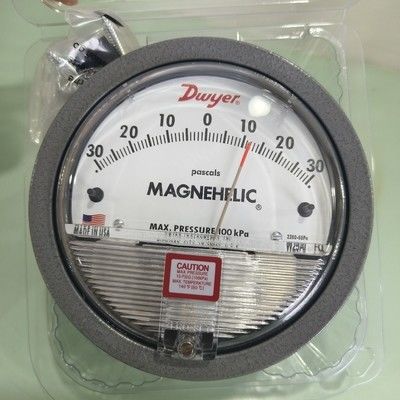

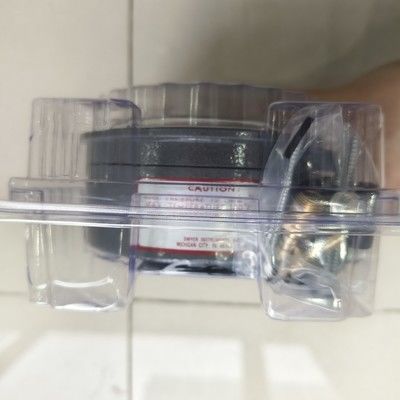

Dwyer Magnehelic 2300-60PA Differential Pressure Gage

The Dwyer Magnehelic 2300-60PA is a high-accuracy differential pressure gage designed for measuring positive, negative, or differential pressures in air and non-corrosive gas systems. With a range of 60-0-60 Pa and ±2% full-scale accuracy, it leverages Dwyer's frictionless magnetic movement to deliver reliable readings without power requirements.

Key Features

Precision Measurement:

Range: 60-0-60 Pa with minor divisions for detailed readings
Accuracy: ±2% of full scale at 70°F (21.1°C); upgrade to -HA for ±1% accuracy
Measures positive, negative (vacuum), or differential pressures in air/non-corrosive gases

Robust Construction:

Die-cast aluminum case with gray finish, passing 168-hour salt spray tests
IP67 enclosure rating for weatherproofing and protection against dust/water
Overpressure relief plug activates at ~25 psig (1.72 bar) to prevent damage

Versatile Installation:

4" dial face with clear acrylic cover for undistorted viewing
1/8" female NPT taps (side/back) for flexible pressure connections
Calibrated for vertical mounting; can be re-zeroed for other angles

Functional Flexibility:

No power needed, suitable for isolation/hospital settings and temporary units
Applications include filter resistance, air velocity (with Pitot tube), and blower pressure
Compatible with hydrogen when ordered with Buna-N diaphragm (pressures <35 psi)

Technical Specifications

Pressure Limits	-20 in Hg to 15 psig (-0.677 to 1.034 bar); MP/HP options up to 35/80 psig
Temperature Range	20-140°F (-6.67-60°C); -20°F (-28°C) with low-temp option
Weight	1 lb 2 oz (510 g); includes mounting adapters and plugs

Safety & Compliance

Meets RoHS II standards (excluding -SP models). Explosion-proof variants available via Series AT-2000 for ATEX zones.
