Name: Dwyer Series DM-2000 Differential Pressure Transmitter for Air & Gases
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-2000
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer Series DM-2000 Differential Pressure Transmitter for Air & Gases

Dwyer Differential Pressure Transmitter

Air Differential Pressure Transmitter

Gases Differential Pressure Transmitter

Brand Name:

Dwyer

Certification:

Model Number:

DM-2000

Request A Quote

Product Details

Applicable Industries:

Machinery Repair Shops

Weight (KG):

Showroom Location:

None

Video Outgoing-inspection:

Not Available

Machinery Test Report:

Not Available

Marketing Type:

Ordinary Product

Highlight:

Dwyer Differential Pressure Transmitter

Air Differential Pressure Transmitter

Gases Differential Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

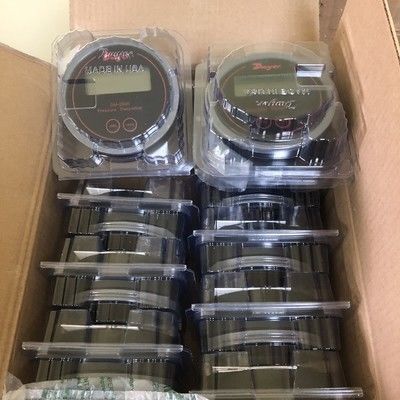

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

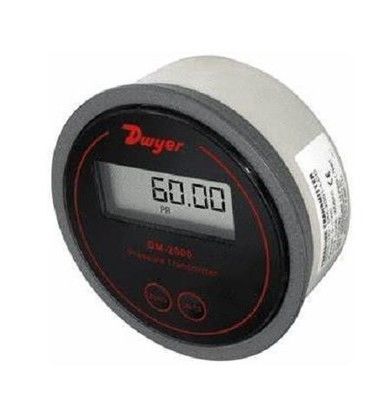

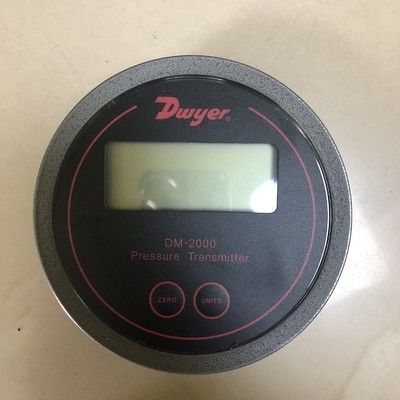

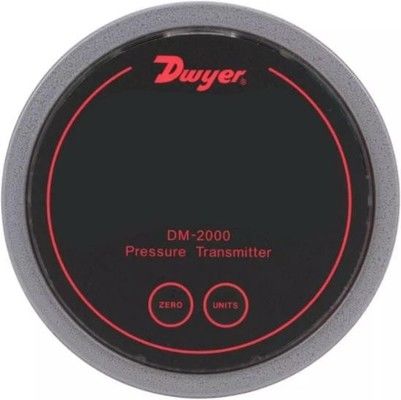

Dwyer Series DM-2000 Differential Pressure Transmitter for Air & Gases

Product Overview

The Dwyer Series DM-2000 Differential Pressure Transmitter is a precision industrial instrument designed for measuring pressure in air and compatible gases. With its standard 4-20 mA output signal, it provides reliable process control in various industrial applications.

Attribute	Value
Applicable Industries	Machinery Repair Shops
Weight (KG)	1
Showroom Location	None

Key Features

Precision Measurement Measures air and compatible gases with ±1% FS accuracy (±4% FS for ±30 Pa model) at 70°F. Features stable performance with ±1% FS/year drift resistance.
Easy Installation Housing matches standard Magnehelic gage cutout dimensions for easy retrofitting. Includes inherent pressure connections for 1/8" I.D. tubing.
Advanced Calibration Digital push-button zero and span adjustments with optional 3.5-digit LCD display showing process values in selectable engineering units.
Robust Performance Operates in 20 to 120°F (-6.67 to 48.9°C) range with 10 psig (0.69 bar) pressure limit. Thermal effect of ±0.055% FS/°F (standard).
Reliable Connectivity 2-wire 10-35 VDC power supply with 4-20 mA output and screw-type terminal block for secure connections.
Compact Design Lightweight at only 4.8 oz (136 g), ideal for space-constrained installations.

Technical Specifications

Temperature Range: 20 to 120°F (-6.67 to 48.9°C)
Pressure Limit: 10 psig (0.69 bar)
Power Supply: 10-35 VDC
Output Signal: 4-20 mA
Loop Resistance: Up to 1250 Ω
Mounting Orientation: Vertical
