Series Measure Pressure Fluke 717 Pressure Calibrator With Internal Sensor

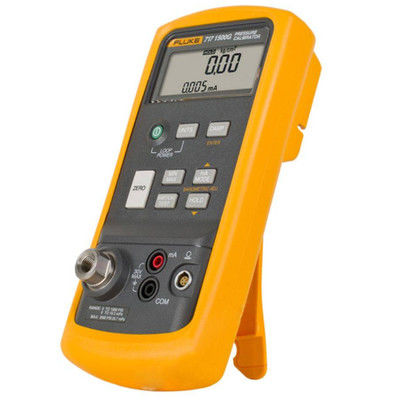

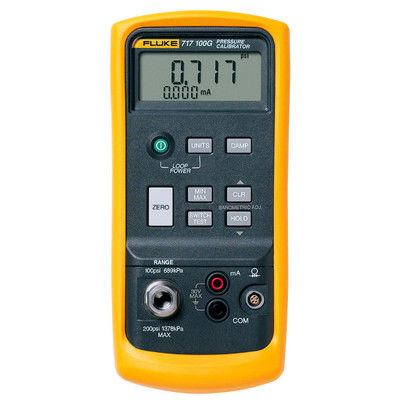

Fluke 717 Pressure Calibrator

Product Introduction

The Fluke 717 Pressure Calibrator is a precision instrument designed for accurate pressure and current measurements in industrial calibration applications. With an internal sensor offering 0.05% full-scale accuracy up to 5000 psi/345 bar (5000G model), it enables reliable calibration of pressure transmitters, switches, and P/I instruments. The calibrator also measures mA with 0.015% accuracy, sources 24V loop power, and supports 29 Fluke 700Pxx Pressure Modules for extended ranges up to 10,000 psi/700 bar. Its rugged design, long battery life, and versatile features make it ideal for field and bench calibration tasks.

Product Features

The Fluke 717 Pressure Calibrator is a precision instrument designed for accurate pressure and current measurements in industrial calibration applications. With an internal sensor offering 0.05% full-scale accuracy up to 5000 psi/345 bar (5000G model), it enables reliable calibration of pressure transmitters, switches, and P/I instruments. The calibrator also measures mA with 0.015% accuracy, sources 24V loop power, and supports 29 Fluke 700Pxx Pressure Modules for extended ranges up to 10,000 psi/700 bar. Its rugged design, long battery life, and versatile features make it ideal for field and bench calibration tasks.

Product Features

High-Accuracy Pressure Measurement:

Internal sensor: 0.05% full-scale accuracy up to 5000 psi/345 bar (5000G model).

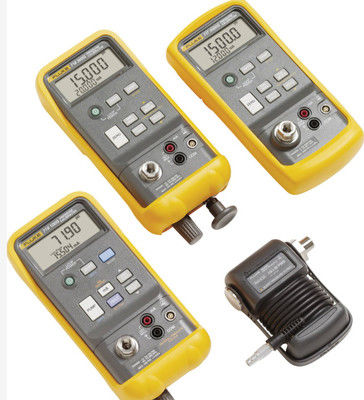

Expandable to 10,000 psi/700 bar with 29 compatible Fluke 700Pxx Pressure Modules.

Precision Current Measurement & Loop Power:

Measures mA with 0.015% accuracy and 0.001 mA resolution.

Sources 24V loop power for calibrating transmitters.

Versatile Pressure Switch Testing:

Captures set, reset, and deadband values of pressure switches.

Calculates error percentages for mA measurements to facilitate pass/fail decisions.

Multiple Engineering Units & Functions:

Selects 11 engineering units (psi, bar, kPa, etc.).

Features zero, min/max hold, and data hold functions for convenient measurements.

Field-Ready Design:

1/8" NPT female fitting compatible with non-corrosive gases and liquids.

Long-lasting battery for extended field use.

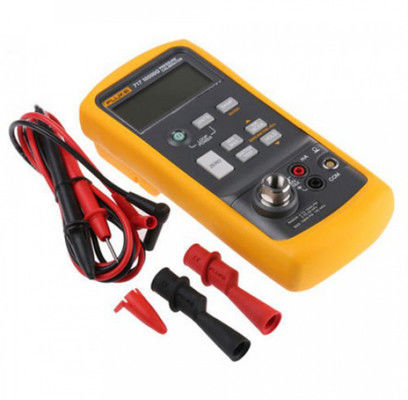

Holster with test lead storage and compatibility with Toolpack magnetic hanging system.

Calibration Capabilities:

Simultaneously measures pressure and current to calibrate P/I instruments.

Specifications:

Origin: USA

Warranty: 1 Year

Dimensions/Weight: Compact design for portability (details in user manual)
