Product Introduction

The DC1000 family consists of microprocessor - based controllers. They integrate high - performance functionality and reliability at an affordable price. Available in four form factors: 1/16 DIN, 1/8 DIN, 3/16 DIN, and 1/4 DIN. These controllers are well - suited for temperature regulation in diverse applications, including dryers, semiconductor packaging/testing, plastic processing, packaging machinery, painting and coating, as well as climatic chambers. The DC1000 family offers basic control functions along with advanced features like motor position control, phase angle power control, and setpoint programming.

Key Features

Easy to configure: There are two configuration levels (Basic and Advanced). A 4 - digit security code safeguards against unauthorized parameter changes. Parameters can be hidden to avoid mis - configuration.

Control algorithms: Provide multiple PID algorithms such as PID or ON/OFF control, Heat/Cool PID with 2 different PID sets, motor position control (with or without phase control), single - phase control (with or without zero crossover control), and three - phase control (with or without zero crossover control).

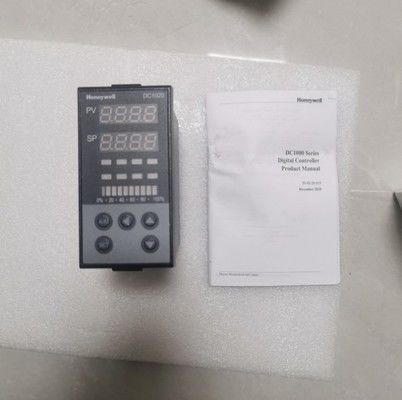

Dual display and Bargraph (for DC1030): Features two large 4 - digit displays and one 10 - bar graph display. Up to 8 LEDs show the status of different outputs (Control, Alarm, etc.), and it also indicates the Auto/Manual and Programmer states.

Setpoint Programming: Offers two programs, each with a maximum of 8 segments. The 2 programs can be combined to form a single 16 - segment program.

Extended Alarm capability: Has two different alarm outputs per instrument, with 17 configurable alarm modes.

Autotuning capability

Communications (for DC1040): Equipped with RS232 or RS485 Modbus RTU/ASCII. Up to 32 DC1000 Controllers can connect to a single host computer. The host can change the setpoint (SP), monitor the process variable (PV), output, or modify the unit's configuration. It also supports remote setpoint capability.

Manual/Auto modes

Universal Power supply: Operates on voltages from 85Vac to 264Vac at 50/60Hz. 24Vdc operating voltage is optional.

Technical Specifications

Form factors: 1/16 DIN (DC1010), 1/8 DIN (DC1020), 3/16 DIN (DC1030), 1/4 DIN (DC1040)

Operating temperature: 0 to 50°C (32 to 122°F)

Humidity: 10 to 85% RH (non - condensing)

Power supply: 85 - 264Vac 50/60Hz (standard); 24Vdc (optional for some models)

Alarm outputs: 2 different alarm outputs per instrument (configurable modes: 17 types)

Communication interfaces (for DC1040): RS232, RS485 (Modbus RTU/ASCII protocol)

Program segments: 2 programs, max 8 segments each (can combine to 16 - segment program)

Display (for DC1030): Two 4 - digit displays, 10 - bar graph display, up to 8 status LEDs
