Name: UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: UT682D
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester

Target Cable Tester Wire Tracer

Automatically Identify Wire Tracer

UT683KIT UT682D Wire Tracer

Brand Name:

UNI-T

Certification:

Model Number:

UT682D

Request A Quote

Product Details

Product Name:

UT683KIT

Headset Jack:

3.5mm

Model:

Wire Tracer

Customized Support:

OEM, ODM

Highlight:

UT683KIT Wire Tracer, Multi-function Wire Tracer, UT682D Wire Tracer

Highlight:

Target Cable Tester Wire Tracer

Automatically Identify Wire Tracer

UT683KIT UT682D Wire Tracer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Contact Now

Product Description

UNI-T UT683KIT UT682D Wire Tracer Automatically Identify Open Short Polarity Multi-function Target Cable Tester

Specifications	Range		UT682	UT682D
Wire tracking features	Wire types		LAN cabletelephone linecoaxial cableelectric wire	Telephone linetwisted-
				pairelectric wire
	Indication light for signal strength		√
	Live switchboard wire tracing		√
	Switchboard wire tracing distance		≥100m
	Telephone lines tracking distance		≥3000m	≥3000m
	Unshielded cables tracking distance		≥320m
	Shielded cables tracking distance		≥320m
	Open and short circuit test		√
	Polarity indication for	DCV function, range:	√	√
	telelphone lines	±(5V~52V)
	Telephone lines and LAN cables distinction	Jacks distinction	√	√
	Broken wire tracking		√
	Transmitter output voltage		≥12V peak-peak	8V DC with a new battery
	Transmitter low battery indication		6.6V±0.5V
	Transmitter power supply	9V battery	√	√
	Max transmitter working current		25mA
	Headphone jack for receiver		√
	Receiver power supply	9V battery	√	√
	Max receiver standby current	~10mA	√	√
	Max receiver operating current	<40mA (AC, RMS)	√	√
Wire alignment	Line sequence measurement	9 LEDs (LED1~LED8, LED_G)	√
	Line sequence measuring speed	Fast and slow selectable	√
	LAN cable: shielded/unshielded indication		√
Transmitter input			52V DC	60V DC
voltage protection
Operating environment	Operating temperature: 0~40℃; Storage temperature: -10~50℃
	Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
General Characterisitics
Product color	Red and grey
Product net weight	UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g
Product size	UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm
	UT682D: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm

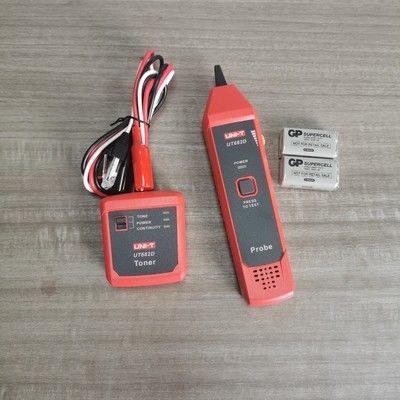

Standard accessories	9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)
Standard individual packing	Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual
Standard quantity per carton	UT682: 24pcs; UT682D: 20pcs
Standard carton measurement	UT682: 575mm x 310mm x 430mm; UT682: 425mm x 265mm x 260mm
Standard carton gross weight	UT682: 12.3kg; UT682D: 7.5kg
