Product Introduction

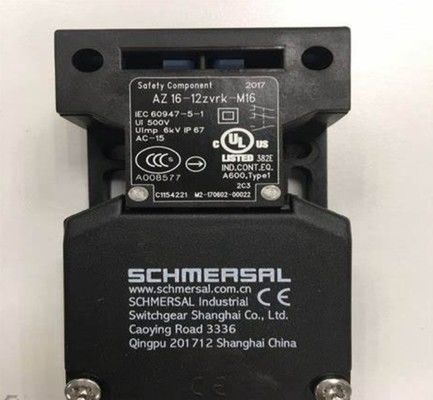

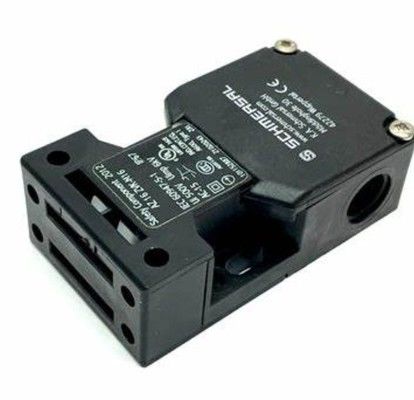

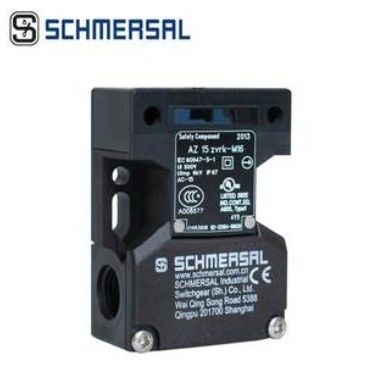

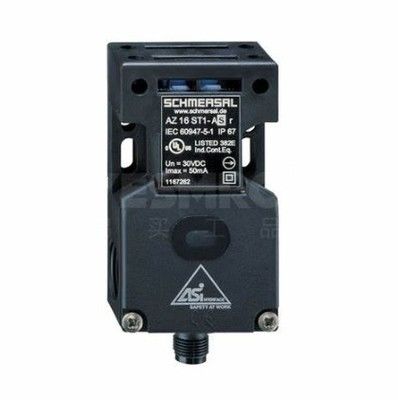

This 3-axis safety interlock switch is designed for industrial safety applications, featuring 1 auxiliary contact and 1 safety contact with positive break technology. Compliant with EN ISO 13849-1, it achieves Performance Level c (Category 1) in single-channel use and up to PL d (Category 3) in dual-channel configurations with a logic unit. The switch offers 2 million operations for NC contacts and 1 million for NO contacts, ensuring long-term reliability in harsh environments. With IP67 protection and a wide temperature range (-30°C to 80°C), it suits heavy-duty machinery and automated systems.

Product Features

Safety Compliance:

Meets EN ISO 13849-1, PL c (single-channel) and PL d (dual-channel with logic unit).

Positive break NC contacts ensure fail-safe operation (min. 10 N break force).

B10D ratings: 2M operations (NC), 1M operations (NO) at 10% Ie.

Mechanical Design:

3 actuating directions for flexible installation.

3x M16 cable glands, screw terminals for 0.25–2.5 mm² cables.

Mechanical life: ≥1M operations, latching force 30 N, max actuating speed 2 m/s.

Environmental Resistance:

IP67 protection against dust and water immersion.

Operating temp: -30°C to 80°C, storage: -40°C to 85°C.

Rated for 2,000 m altitude, pollution degree 3, overvoltage category III.

Electrical Specifications:

Safety contacts: AC-15 (230V/4A), DC-13 (24V/4A).

Auxiliary contacts: same as safety contacts for consistent switching.

Thermal test current 10A, short-circuit rating 1,000A.

Installation Flexibility:

2x M6 fixing screws, dimensions: 30L x 52W x 90H mm.

Supports solid/single-wire, solid/multi-wire, and flexible cables.

Reliability Features:

20-year mission time, silver contact material for low resistance.

Slow-action switching with positive break for fault exclusion.

Max switching frequency: 4,000 cycles/hour for high-duty cycles.
