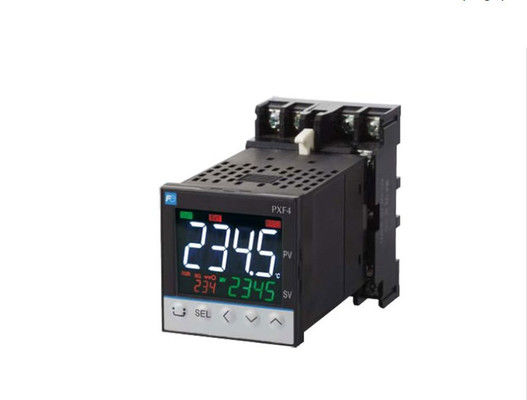

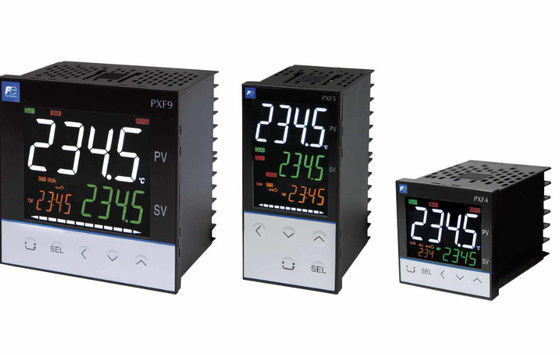

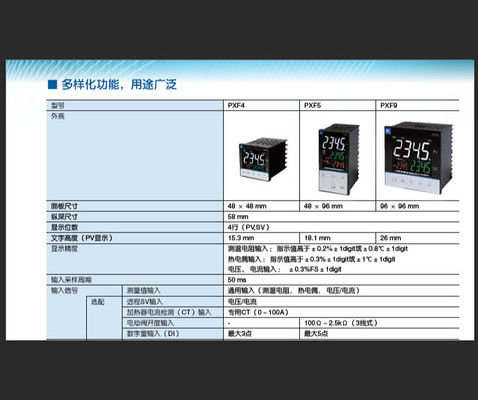

Fuji Module Type Temperature Controller (Model: PXF)

Product Introduction

The Fuji Module Type Temperature Controller (Model: PXF) is a precision industrial instrument designed for reliable temperature regulation in general machinery applications. Engineered with a microcontroller-based design, this controller ensures accurate temperature monitoring and control within the range of -10°C to 50°C, suitable for indoor use in environments with up to 90% RH (non-condensing). It complies with safety standards such as UL61010 and EN61010, featuring basic insulation and overvoltage protection, making it ideal for industrial setups requiring stable temperature management. The controller supports various input/output configurations and communication protocols (MODBUS), allowing seamless integration into automated systems.

Product Features

Precision Temperature Control:

Microcontroller-based design (Model: PXF) for accurate temperature regulation.

Operating ambient temperature: -10°C to 50°C; humidity: ≤90% RH (non-condensing).

Safety & Compliance:

Overvoltage Category II, Pollution Degree 2 (IEC 61010-1).

Basic insulation (1500V AC) and functional insulation (500V AC) for electrical safety.

Complies with UL61010 and EN61010 standards when installed as specified.

Input/Output Capabilities:

Supports process value input, remote set value (SV) input, and CT input.

Control outputs: SSR drive, current/voltage outputs, relay contacts, motorized valve controls.

Digital inputs (1–5) and RS-485 communication (MODBUS compatible).

Installation & Wiring:

Flush mounting design with included bracket and waterproof packing.

Required fuse: 250VAC, 0.1A T (for 100–240V AC) or 1A T (for 24V DC/AC).

Wiring must be performed by qualified personnel per local standards.

Environmental & Operational Notes:

Indoor use only; must be mounted in an enclosure to prevent electric shock.

Do not use for safety-critical applications (e.g., human protection, transportation).

Communication & Connectivity:

RS-485 interface for MODBUS communication (refer to INP-TN5A2227-E manual).

Accessories & Documentation:

Includes temperature controller, instruction manual, mounting bracket, waterproof packing.

Additional manuals available: EDS11-178 data sheet, INP-TN5A2400-E operation manual.
