Product Introduction

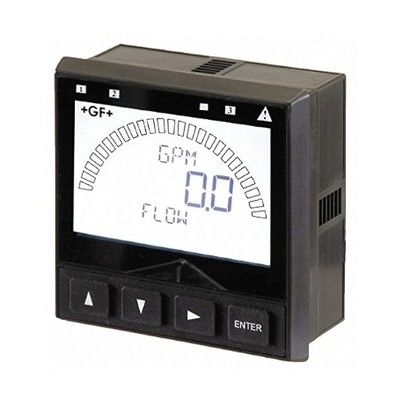

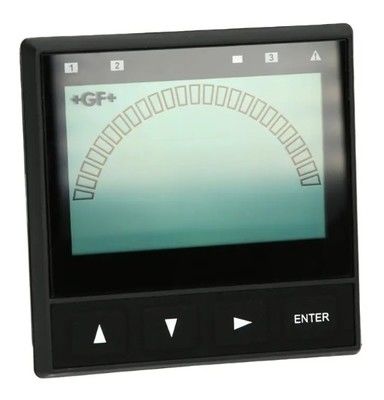

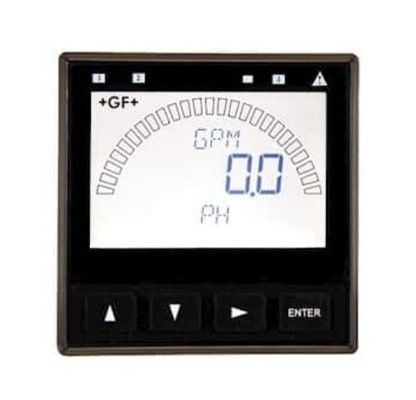

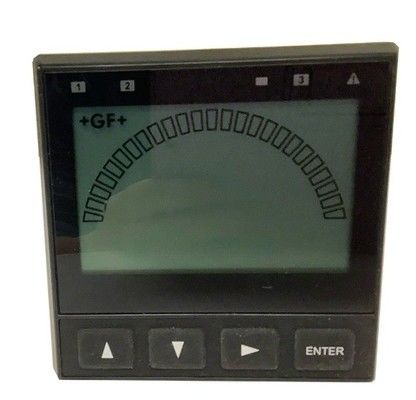

The GF Signet 9900 Multi-Parameter Transmitter is a versatile single-channel interface designed to integrate with a wide range of sensors, including flow rate, pH/ORP, conductivity/resistivity, salinity, pressure, temperature, liquid level, and any 4-20mA output devices. Featuring a super-large 3.90" x 3.90" auto-sensing backlit display, it offers panoramic visibility—4 to 5 times clearer than traditional transmitters—with high-brightness characters and dial-style digital bar charts to minimize reading errors. Available in panel-mounted or field-mounted configurations, the transmitter operates on 12-32VDC power (standard 24VDC) and supports loop-powered operation via compatible sensors, making it ideal for industrial process monitoring and control systems.

Key Features

Universal Sensor Compatibility

Supports 4-20mA output sensors for flow, pH/ORP, conductivity, pressure, temperature, and more.

Enhanced Visibility Display

3.90" x 3.90" auto-backlit screen with panoramic view for distant reading (4-5x traditional range).

Displays primary/secondary measurements, units, and dial-style bar charts simultaneously.

Flexible Power Options

12-32VDC powered (standard 24VDC) or loop-powered via sensor integration.

Dual Mounting Configurations

Panel-mounted or field-mounted designs for versatile installation in control panels or harsh environments.

Reliable Performance

Fast 1-second update rate for real-time monitoring.

Fault alarm outputs (3.6mA/22mA) for quick error detection.

Compact & Lightweight

Weighs only 2kg for easy installation and transportation.

Technical Specifications

Sensor Input:4-20mA (universal for various parameters)

Display Size:3.90" x 3.90" (auto-sensing backlit)

Power Supply:12-32VDC (loop-powered option available)

Output Signals:4-20mA (fault signals: 3.6mA/22mA)

Update Rate:1 second

Mounting Type:Panel-mounted (also field-mounted version)

Weight:2kg

Operating Temperature:-10°C to 60°C (standard)
