Name: Dwyer Series DPG Digital Pressure Gage Enclosure Rating Designed To Meet NEMA 4/4X IP66 Pressure Limit 2x Pressure Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DPG-006
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer Series DPG Digital Pressure Gage Enclosure Rating Designed To Meet NEMA 4/4X IP66 Pressure Limit 2x Pressure Range

IP66 Pressure Gage

NEMA 4 4X Pressure Gage

Brand Name:

dwyer

Certification:

Model Number:

DPG-006

Request A Quote

Product Details

Warranty:

1 Year

Wetted Materials:

Type 316L SS.

Accuracy:

DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 Least Significant Digit @ 70°F (21°C)

Enclosure Rating:

Designed To Meet NEMA 4/4X (IP66

Pressure Limit:

2x Pressure Range For Models ≤1000 Psi; 5000 Psi For 3000 Psi Range; 7500 Psi For 5000 Psi Range

Power Requirements:

(2) AAA Alkaline Batteries, Included, User Replaceable

Highlight:

IP66 Pressure Gage

NEMA 4 4X Pressure Gage

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell STT850 Precision Pressure Transmitter for Industrial Use

Get Best Price

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

Get Best Price

Yokogawa FLXA202 2-Wire Dual Channel Transmitter Analyzer

Get Best Price

Yokogawa EJA430E Gauge Pressure Transmitter 4-20mA Output

Get Best Price

86--17719566736

Contact Now

Product Description

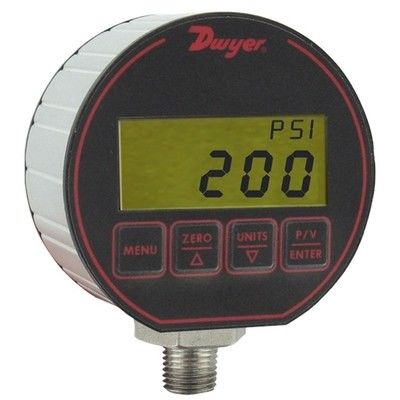

Dwyer Series DPG Digital Pressure Gage

Enclosure Rating Designed To Meet NEMA 4/4X IP66 Pressure Limit 2x Pressure Range

Product Attributes

Attribute	Value
Warranty	1 Year
Wetted Materials	Type 316L SS.
Accuracy	DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 Least Significant Digit @ 70°F (21°C)
Enclosure Rating	Designed To Meet NEMA 4/4X (IP66)
Pressure Limit	2x Pressure Range For Models ≤1000 Psi; 5000 Psi For 3000 Psi Range; 7500 Psi For 5000 Psi Range
Power Requirements	(2) AAA Alkaline Batteries, Included, User Replaceable

Product Description

Dwyer Series DPG Digital Pressure Gage

Product Introduction

The Series DPG Digital Pressure Gage from Dwyer replaces outdated analog gauges with advanced digital technology, offering ±0.25% to ±0.5% full-scale (FS) accuracy and a NEMA 4X (IP66) aluminum housing for rugged durability. Its 4-digit LCD eliminates parallax errors, while battery-powered operation with auto-shutoff ensures up to 2000 hours of use. The intuitive 4-button keypad enables easy access to features like backlight, peak/valley tracking, tare/auto zero, and unit conversion (psi, bar, kPa, in. Hg, etc.).

Product Features

Precision Measurement:

±0.25% FS accuracy (DPG-100 series) for critical industrial applications.
12 selectable engineering units (psi, kg/cm², bar, in. Hg, etc.) for global compatibility.

Rugged Design:

IP66 rating protects against dust and high-pressure water jets.
Anodized aluminum housing resists corrosion and mechanical impact.

User-Friendly Operation:

Tare function zeros out background pressure for absolute measurements.
Peak/valley tracking records maximum/minimum pressure spikes.
Auto-shutoff (60 minutes) conserves battery life; disable option available.

Safety & Compliance:

FM approval (DPG-100 series) for intrinsically safe use in Class I, Division 1, Groups A-D hazardous areas.

Technical Specifications

Model	Pressure Range	Accuracy	Approvals
DPG-000	-14.70-0 psi (vacuum)	±0.5% FS	CE
DPG-002	0-15 psi	±0.25% FS	CE, FM
DPG-005	0-100 psi	±0.25% FS	CE, FM
DPG-010	0-3000 psi	±0.25% FS	CE, FM
DPG-011	0-5000 psi	±0.25% FS	-
DPG-102	0-15 psi (CE/FM approved)	±0.25% FS	CE, FM
