Product Introduction

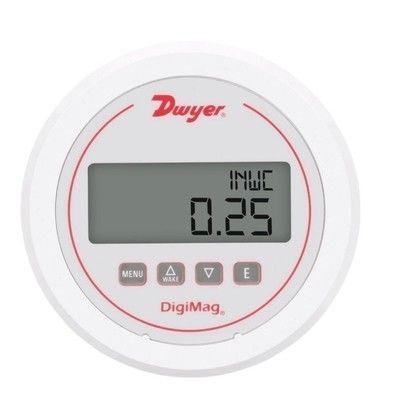

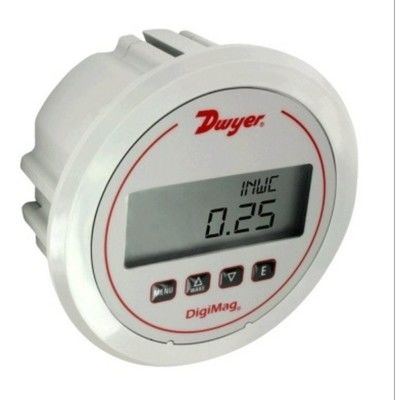

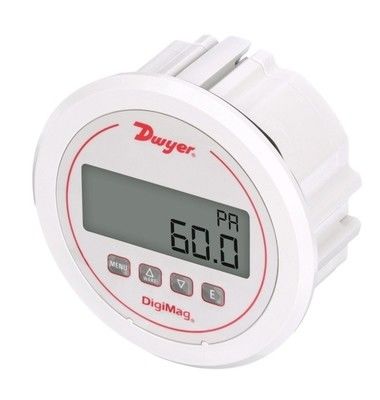

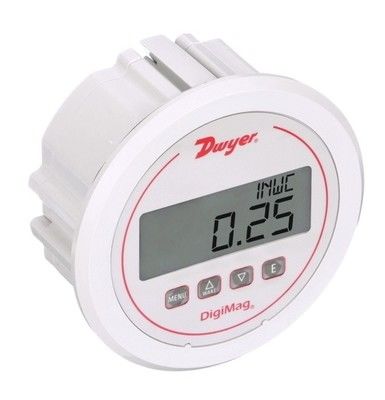

The Dwyer DM-1000 Series DigiMag Digital Differential Pressure Gauge combines the reliability of analog Magnehelic gauges with advanced digital functionality, designed for precise measurement of air and non-combustible gas pressures. With a 4-digit LCD display and field-programmable settings, it offers versatility for pressure, air velocity, and flow applications in HVAC, industrial, and cleanroom environments.

Product Features

Accuracy & Stability:

±1% full-scale (FS) accuracy for ranges ≥2 in. w.c., ±2% for ranges ≤1 in. w.c.

Long-term stability: ±1% FS/year, ideal for critical monitoring.

Digital Flexibility:

4-button interface for easy calibration, unit conversion, and filter alarm setup.

Selectable engineering units: in. w.c., psi, kPa, mBar, etc.

Dual Power Options:

9V alkaline battery (1.5-year life in standby) or 9–24 VDC external power.

Battery backup ensures uninterrupted operation during power outages.

Alarm & Data Functions:

Blinking display for filter maintenance alerts when pressure thresholds are met.

Peak/valley tracking and data smoothing for process analysis.
