Product Description

KMC-CN101A Din Rail Weekly Programmable Timer Switch

Attribute	Value
Minimum Interval	1 Minute
Programmable	17times/week Or Day
Dimensions	62x62x32.5mm
Warranty	1 Year
Product Name	Programmable Timer Switch
Installation Type	Din Rail

Product Introduction

The KMC-CN101A is a versatile din rail-mounted timer switch designed for precise time control in industrial and commercial applications. With support for multiple voltage inputs (12V, 24V, 110V, 220V) and a 16A contact capacity, it enables programmable on/off scheduling for lighting, motors, heaters, and other electrical devices. The LCD display and intuitive button interface make setup simple, while built-in power failure memory ensures program retention during outages.

Product Features

Flexible Voltage Compatibility:
Works with DC (12V/24V) and AC (110V/220V) power supplies, suitable for global applications.
High Load Capacity:
16A relay supports resistive loads (e.g., heaters, lights) and inductive loads (e.g., motors, compressors).
Weekly Programming:
Set up to 172 on/off events per week with 15 customizable weekly modes (e.g., daily, weekday/weekend schedules).
Power Failure Protection:
Rechargeable battery preserves settings for up to 180 days without power.
User-Friendly Interface:
LCD display with backlight; soft rubber buttons for easy time and mode adjustment.

Technical Specifications

Parameter	Detail
Rated Voltage	12V/24V DC, 110V/220V AC (auto-adaptive)
Contact Capacity	16A resistive load (3500W at 220V), 850W inductive load
Power Consumption	≤2W
Internal Battery	1.2V/40mA rechargeable (maintains settings for 180 days during power outages)

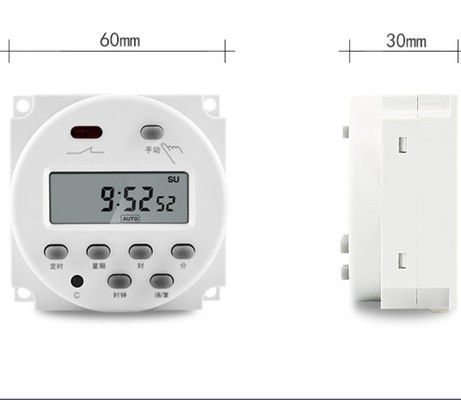

Dimensions	62×62×32.5mm (din rail mountable)
Temperature Range	-10°C to +40°C
Programmable Events	172 groups of on/off events, 168-hour maximum cycle
Minimum Time Interval	1 minute
