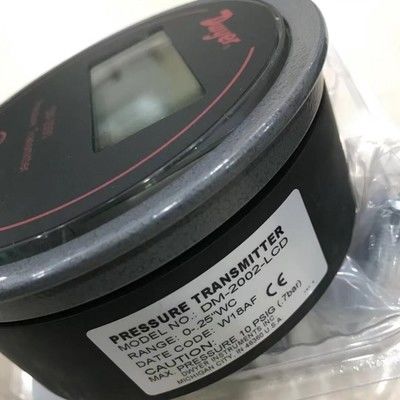

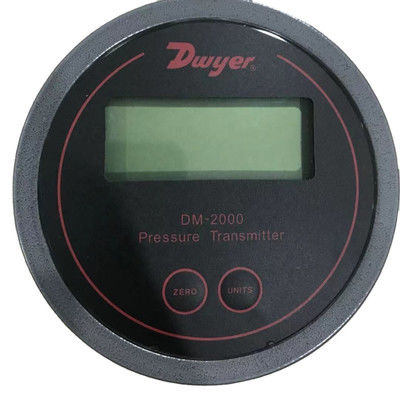

Dwyer DM-2000 Series Differential Pressure Transmitter with Digital Display
Product Introduction
The Dwyer DM-2000 Series Differential Pressure Transmitter with Digital Display is a versatile instrument designed to monitor differential pressure for air and compatible gases, outputting a standard 4–20 mA signal. Engineered to match the mounting hole dimensions of the 2000 Series Magnehelic® differential pressure gauge, it enables seamless replacement and system upgrades. With a range of pre-set pressure spans and customizable options for special ranges, the transmitter caters to diverse industrial needs. Its FRP-molded pressure joints and housing ensure easy installation, while digital push-button controls simplify zero and span calibration. The optional 3.5-digit LCD display provides real-time on-site readings, with 4–6 selectable engineering units tailored to different pressure ranges.
Product Features
Accuracy & Stability:
±1% FS accuracy at 70°F (21°C); long-term stability of ±1% FS per year.
Thermal effect: ±0.055% FS/°F (0.099% FS/°C).
Output & Power:
Standard 4–20 mA output signal; compatible with 10–35 VDC (2-wire system).
Loop resistance: up to 1250 Ω; current consumption: 38 mA max.
Display & Units:

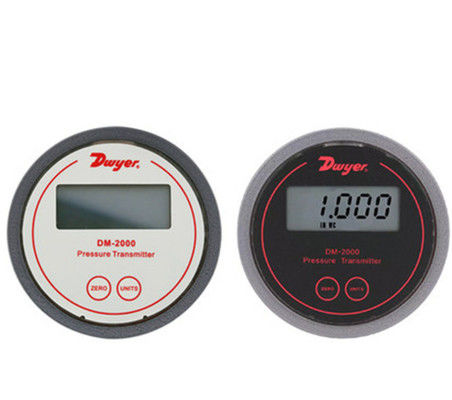

Optional 3.5-digit LCD display (0.7" height) for instant pressure visualization.
Selectable engineering units (4–6 options) based on pressure range.
Construction & Installation:
FRP-molded housing and pressure joints for durability and easy setup.
Process connections: 1/8" ID tubing; vertical mounting orientation.
Weight: 4.8 oz (136 g); compact design for space-constrained applications.
Environmental Specs:
Temperature range: 20–120°F (-6.67–48.9°C).
Pressure limit: 10 psig (0.69 bar); suitable for air and non-combustible gases.
Calibration & Customization:
Digital push-button zero and span adjustments for quick field calibration.
OEM/ODM support; customizable ranges available upon request.
Certifications:
IECEE, CCC, ISO certified; backed by a 1-year warranty.
Technical Specifications
| Parameter |
Value |
| Model |

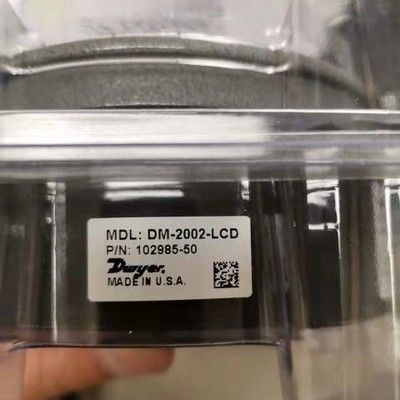

DM-2002 |
| Output Signal |
4–20 mA |
| Power Requirements |
10–35 VDC (2-wire) |
| Accuracy |
±1% FS at 70°F |
| Temperature Range |
20–120°F (-6.67–48.9°C) |
| Pressure Limit |
10 psig (0.69 bar) |
| Display |
3.5-digit LCD (0.7" height, optional) |
| Wetted Materials |
Consult factory |
| Mounting Hole Compatibility |
Matches 2000 Series Magnehelic® gauge |
