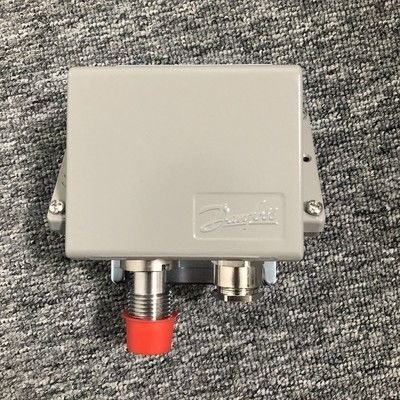

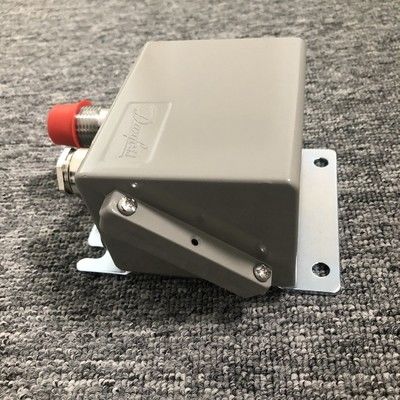

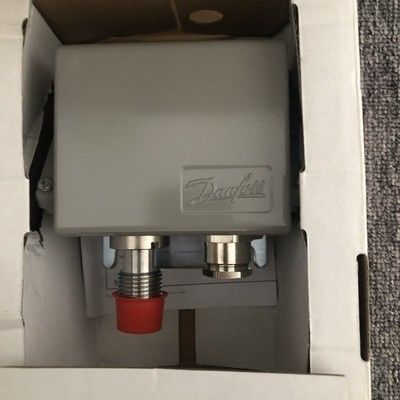

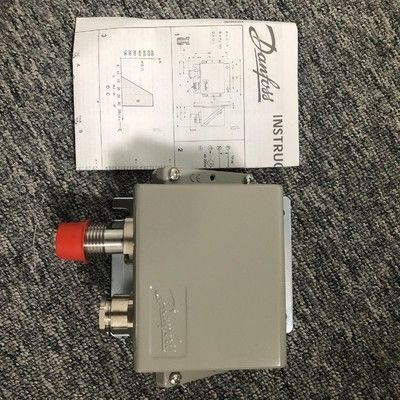

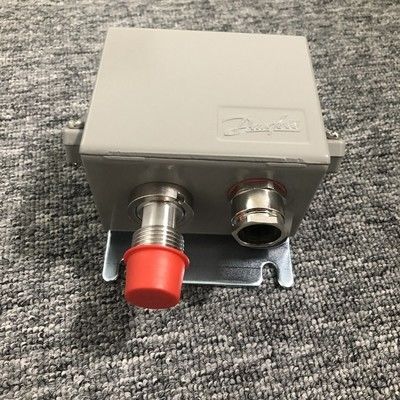

Name: Danfoss EMP 2 Series Pressure Transmitters 084G2106 084G2107 084G2108 084G2109 084G2110 084G2111
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 084G2109
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Danfoss EMP 2 Series Pressure Transmitters 084G2106 084G2107 084G2108 084G2109 084G2110 084G2111

084G2106 Pressure Transmitters

EMP 2 Series Pressure Transmitters

084G2107 Pressure Transmitters

Brand Name:

Dandoss

Certification:

Model Number:

084G2109

Request A Quote

Product Details

Place Of Origin:

Japan

Model Number:

084G2109

Condition:

New And Original

Product Name:

Thermostat

Selling Units:

Single Item

Single Package Size:

10X10X10 Cm

Highlight:

084G2106 Pressure Transmitters

EMP 2 Series Pressure Transmitters

084G2107 Pressure Transmitters

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Contact Now

Product Description

Danfoss EMP 2 Series Pressure Transmitters 084G2106 084G2107 084G2108 084G2109 084G2110 084G2111

Gross weight	1.058 Kilogram
Net weight	0.98 Kilogram
Volume	2.447 Liter
EAN	5702423020164
+ supply	P
- common	N
Accuracy, max. [±FS%]	0.01
Accuracy, typical [±FS%]	0.005
Approval	ABS
	BV
	CCS
	DNV
	GL
	GOST POCC
	KR
	LR
	NNK
	RINA
CE evaluated	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	70 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	158 °F
Compensated temp. range [°F] [min]	32 °F
Electrical connection	Terminal block
Electrical connection size	Pg 13.5
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE and contain batteries	No
International Article Number	5702423020164
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	70 °C
Medium temperature range [°C] [min]	-10 °C
Medium temperature range [°F] [max]	158 °F
Medium temperature range [°F] [min]	14 °F
Non-linearity BFSL [卤FS%]	0.003
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	20 bar
Packing format	Multi pack
Pressure connection notes	EXT. G1/4 INT
Pressure connection size	45659
Pressure connection standard	EN 228-1
Pressure connection type	G
Pressure Male/Female	Male/Female
Pressure range [bar] [max]	10 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	145 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Gauge (relative)
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	6010d1e2-f473-4af2-afdd-bb494bdd0100
SCIP dossier product name	EMP
Specification key	EMP 2-2011-F6CD24-2
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	12 V
Supply voltage [V] DC [min]	12 V
Type	EMP 2
