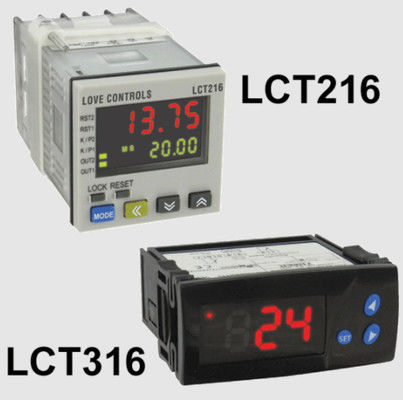

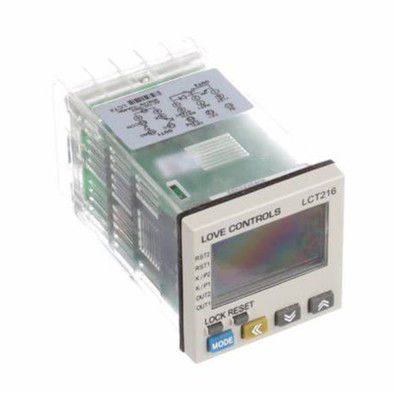

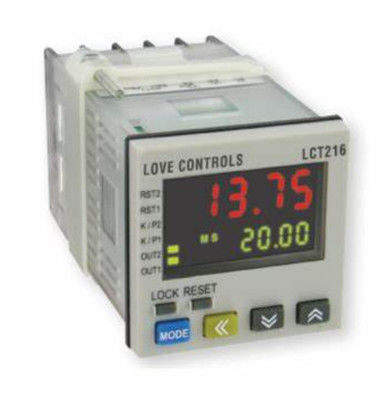

Dwyer LCT216-100 Digital Timer / Tachometer / Counter

Dwyer LCT216-100 Digital Timer/Tachometer/Counter

Product Introduction

The Dwyer LCT216-100 is a versatile three-in-one device combining timer, tachometer, and counter functions in a single compact unit. Designed for industrial applications, it features a bright, easy-to-read display that shows set points, real-time process values, and operating modes simultaneously. With fourteen pre-programmed timer functions and multiple counting modes (one-stage, two-stage, batch, total, dual), the LCT216-100 simplifies complex timing and counting tasks. External dip switches on the unit’s side enable quick parameter setup, making it ideal for rapid deployment in manufacturing, packaging, and automation systems.

Product Features

Tri-Functionality:

Timer: Fourteen pre-programmed functions for single or multi-stage timing.

Tachometer: Measures rotational speed of motors, conveyors, or shafts.

Counter: Tracks events, parts, or cycles in batch or total modes.

Display & Interface:

Bright digital display for clear visualization of set points and real-time data.

Operating mode indicators for immediate process status identification.

Counting Modes:

One Stage: Simple on/off timing for basic operations.

Two Stage: Sequential timing for multi-step processes.

Batch/Total: Tracks part counts or cycles for quality control.

Dual Counting: Simultaneous tracking of two independent variables.

Quick Setup:

External dip switches for rapid programming without complex menus.

Pre-programmed functions reduce configuration time for common applications.

Industrial Durability:

Compact design suitable for panel mounting in manufacturing environments.

Reliable performance in typical industrial temperature and humidity ranges.

Technical Specifications
