Product Introduction

The WEIDMULLER PRO MAX 120W 24V 5A Switching Power Supply is a high - performance power supply unit designed for a variety of industrial applications. It is of the switch - mode power supply type, providing a stable DC output voltage of 24 V with a rated power of 120 W and a maximum output current of 5 A. With its compact metal housing, it offers reliable power conversion and distribution, ensuring efficient and stable operation in different working environments.

Product Features

• Wide Input Voltage Range: Accepts AC input voltages from 85 to 277 VAC, and DC input voltages from 80 to 370 VDC, providing flexibility in power source connection.
• High Efficiency: Achieves a high efficiency of 89%, reducing power loss and improving energy utilization.
• Stable Output: Maintains a rated output voltage of 24 V DC ± 1%, with low residual ripple and breaking spikes of less than 50 mVss at full load, ensuring stable power supply for connected devices.
• Multiple Protections: Equipped with short - circuit protection, overload protection, and reverse - voltage protection from the load, enhancing the safety and reliability of the power supply.

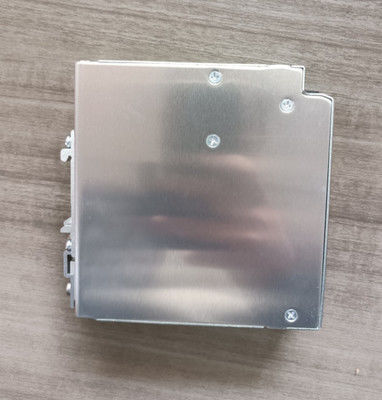

• Compact and Durable: Housed in a corrosion - resistant metal case with dimensions of 125 mm × 130 mm × 40 mm and a net weight of 858 g, it is compact and suitable for various installation scenarios.
• Good EMC Performance: Complies with EMC standards such as EN 55024, EN 55032, etc., and has strong anti - interference ability.
• Convenient Installation: Can be horizontally mounted on a TS35 mounting rail, and multiple units can be mounted side by side without space in between, facilitating installation and wiring.
• Status Indication: Features an LED red/green and relay for status indication. When the output voltage is ≥ 21.6 V DC, the LED is green and the relay is on; when it is ≤ 20.6 V DC, the LED is red and the relay is off, providing visual feedback on the working status.
