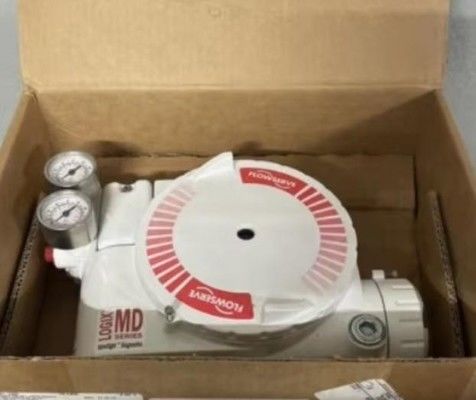

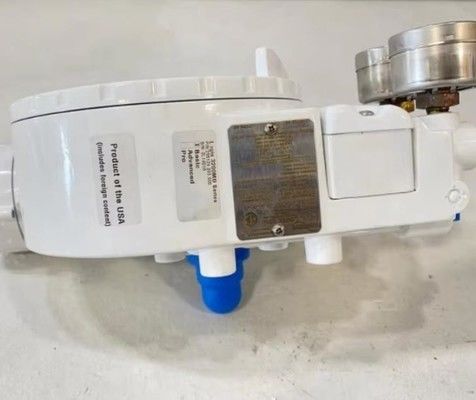

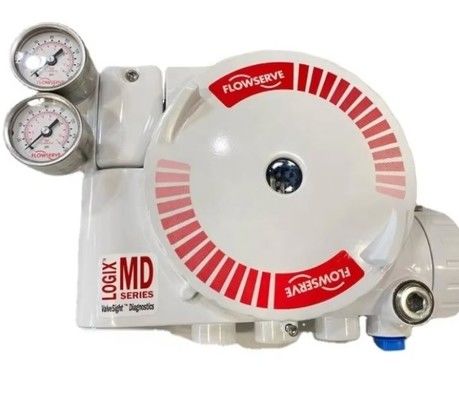

Flowserve LOGIX 3200MD-28 Control Valve with Digital Valve Positioner
Product Introduction
The Flowserve LOGIX 3200MD-28 Control Valve integrates a digital valve positioner and a pneumatic actuator filter regulator, designed for precise flow control in industrial processes. Equipped with the Logix3200MD digital HART positioner, it leverages state-of-the-art piezoelectric technology to ensure superior performance and reliability. The system supports flexible configuration via local buttons, HART handheld devices, or SoftTools software, making it adaptable to diverse control environments. Ideal for automation systems, it combines accurate positioning with robust construction to meet demanding process control needs.
Product Features
Advanced Positioning Technology:
The Logix3200MD digital HART positioner uses piezoelectric technology for high-precision valve positioning, ensuring repeatability within 0.25% of full scale (F.S.).
Multiple Configuration Options:
Configurable via local buttons, HART handheld tools, or SoftTools software, enabling intuitive setup and remote management.
Reliable Power & Communication:
Operates on a two-wire, 4–20 mA power supply with a compliance voltage of 10.0 VDC, supporting stable HART communication for real-time data exchange.
Integrated Pneumatic Components:
Includes a pneumatic actuator filter regulator to maintain clean, regulated air supply, enhancing actuator performance and longevity.
Industrial-Grade Durability:
Built for harsh environments, the system ensures consistent operation in demanding process control applications, combining mechanical robustness with digital intelligence.
Easy Maintenance & Monitoring:
Local status indicators and diagnostic capabilities via HART protocol facilitate quick troubleshooting and proactive maintenance, reducing downtime.
Technical Specifications
| Power Supply |
Two-wire, 4-20 mA |
| Compliance Voltage |
10.0 VDC |
| Repeatability |
0.25% F.S. |
