Testo 549 Digital Manifold for Refrigeration Systems

Testo Refrigeration Digital Manifold

Refrigeration Systems Digital Manifold

Brand Name:

Testo

Certification:

Model Number:

549

Request A Quote

Testo 549 Digital Manifold for Refrigeration Systems

Product Details

Battery Life:

250 H (without Illumination, Without Bluetooth)

Dimensions:

200 X 109 X 63 Mm

Warranty:

1 Year

Customized Support:

OEM, ODM

Operating Temperature:

-20 To +50 °C

Storage Temperature:

-20 To +60 °C

Highlight:

Testo Refrigeration Digital Manifold

Refrigeration Systems Digital Manifold

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KMC2000MICRO DIFFERENTIAL PRESSURE GAUGE

Get Best Price

Dwyer Magnesense MS-111 Micro Differential Pressure Transmitter

Get Best Price

KMC-Y250BF Pressure Gauge 0-60mpa for Gas Water Oil Liquid Medium

Get Best Price

3000MR 3000MRS Combination Pressure Gauge With Low High Set Points

Get Best Price

86--17719566736

Contact Now

Product Description

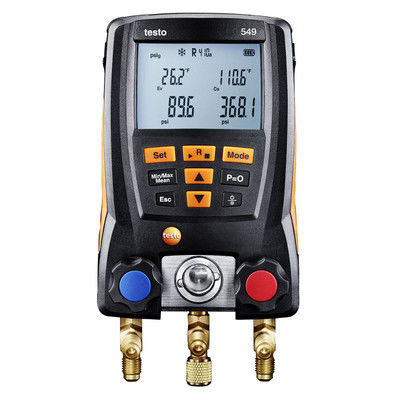

Testo 549 Digital Manifold for Refrigeration Systems

Product Introduction

The Testo 549 digital manifold is a professional-grade tool designed to replace analog gauges, offering precise pressure measurement and intelligent temperature calculations for 60+ refrigerants. With a rugged build and user-friendly interface, it measures high/low side pressures and instantly displays saturation/evaporation temperatures. When paired with optional temperature probes, it enables automatic superheat/subcooling calculations, making it an essential device for HVAC/R technicians.

Testo 549 Digital Manifold for Refrigeration Systems 0

Product Features

Dual Pressure Sensing:

Pressure range: -15 to +870 psi (-1 to +60 bar) with ±0.5% full-scale accuracy.

3x 1/4"" SAE probe connections for high/low side and vacuum measurements.

Refrigerant Versatility:

Preloaded with 60 refrigerant profiles (e.g., R410A, R32, CO₂), expandable via Testo Service.

Temperature Integration:

Optional NTC probes enable -58 to 302°F (-50 to 150°C) temperature measurement (±0.5°C accuracy).

Auto-calculate superheat/subcooling with real-time data.

Design & Usability

Intuitive Display:

Large 2-line backlit LCD for clear readings in low-light environments.

Rugged Construction:

IP42 protection against dust/splashes; 37.39 oz (1060 g) for durable field use.

2-way valve block with sight glass for visual refrigerant flow inspection.

Battery Life:

Up to 250 hours (display/Bluetooth off) for extended field operations.

Included Components

Testo 549 digital manifold

Rechargeable battery pack

Calibration certificate

User manual

Technical Specifications

Temperature
Measuring range	-58° to 302 °F / -50 to +150 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Probe connection	2 Temperature NTC measurement channels

Pressure measurement
Measuring range	-15 to +870 psi / -1 to +60 bar
Accuracy	±0.5 % Fs
Resolution	0.14 psi / 0.01 bar
Probe connection	3 x 1/4" SAE
Overload rel. (high pressure)	943 psi / 65 bar

Vacuum
Measuring range	-15 to 0 psi (indication) / -1 to 0 bar

General technical data
Weight	37.39 oz. / 1060 g
Dimensions	7.87 x 4.29 x 2.48 in. / 200 x 109 x 63 mm
Operating temperature	-4° to 122 °F / -20 to +50 °C
Protection class	IP42
Product colour	Black
Battery life	approx. 250h (display light off, Bluetooth off)
Refrigerants in instrument	R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update by Testo Service	R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature	-4° to 140 °F / -20 to +60 °C
