Name: KMC 770 Digital Auto Car Paint Thickness Meter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMC-770
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

KMC 770 Digital Auto Car Paint Thickness Meter

Auto Car Paint Thickness Meter

Digital Auto Car Paint Thickness Meter

Brand Name:

KACISE

Model Number:

KMC-770

Request A Quote

Product Details

Brand Name:

KACISE

Model:

KMC-770

Probe Triggering Force:

0.3~0.8N

Operating Temperature:

-10~50℃

Measuring Range:

0~2000μm

Product Name:

Coating Thickness Gauge

Highlight:

Auto Car Paint Thickness Meter

Digital Auto Car Paint Thickness Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KMC2000MICRO DIFFERENTIAL PRESSURE GAUGE

Get Best Price

Dwyer Magnesense MS-111 Micro Differential Pressure Transmitter

Get Best Price

KMC-Y250BF Pressure Gauge 0-60mpa for Gas Water Oil Liquid Medium

Get Best Price

3000MR 3000MRS Combination Pressure Gauge With Low High Set Points

Get Best Price

86--17719566736

Contact Now

Product Description

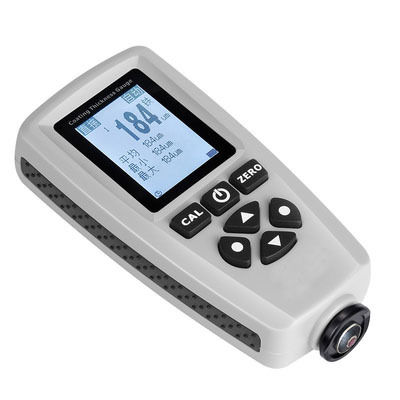

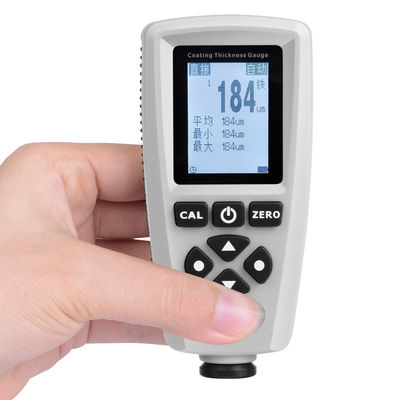

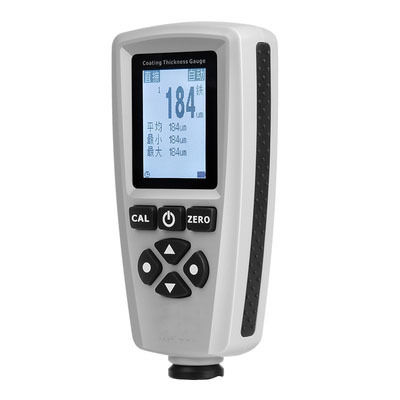

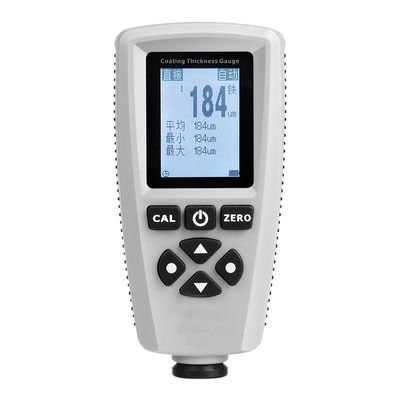

KMC 770 Digital Auto Car Paint Thickness Meter

Product Introduction

The KMC 770 is a high-precision coating thickness tester designed for non-destructive measurement of paint, galvanized layers, and plastic films on metal surfaces. It uses advanced technology to automatically identify ferromagnetic (iron, nickel, cobalt) and non-ferromagnetic (aluminum, copper) substrates, making it ideal for quality control in automotive, manufacturing, and chemical industries. With a measurement range of 0–2000μm and ±(2.5% + 1μm) accuracy, the device ensures reliable data for second-hand car inspections, material testing, and commodity inspection.

KMC 770 Digital Auto Car Paint Thickness Meter 0

Product Features

Dual-Probe Technology:

Ruby-tipped probe automatically identifies iron/aluminum substrates for seamless switching between measurements.

Measures non-conductive coatings on metal and non-ferromagnetic coatings on ferromagnetic metals.

High Precision & Speed:

±(2.5% + 1μm) accuracy with a measurement speed of 2 times/second.

Suitable for thin films (e.g., car paint) and thick coatings (up to 2000μm).

Environment Resistance:

Operates reliably in -10°C–50°C, maintaining accuracy in extreme temperatures.

Red screen warning for out-of-range measurements.

User-Friendly Design:

Auto-shutoff for energy saving (no operation timeout).

Reversible screen for flexible measurement angles in tight spaces.

Compact size (114×53×25mm) and lightweight (80g) for portability.

Data Management:

Store and transfer measurement data to computers for analysis.

Ideal for batch testing and generating quality reports.

Technical Specs at a Glance

Brand name	KACISE
Model	KMC-770
Probe location:	built-in
measuring range	0~2000μm
Probe triggering force	0.3~0.8N
Minimum measurement area	Diameter 15 mm
boundary dimension	1145325mm
Accuracy	±(2.5%+1μm)
Weight	80g
operating temperature	-10~50℃
product name	Coating thickness gauge
Warranty	1 year
