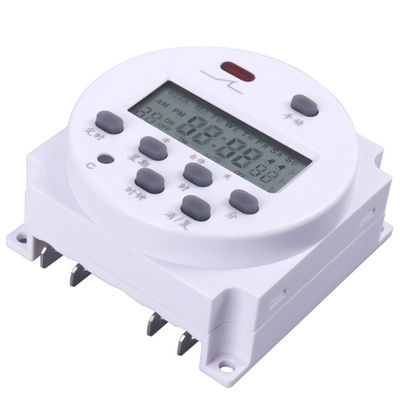

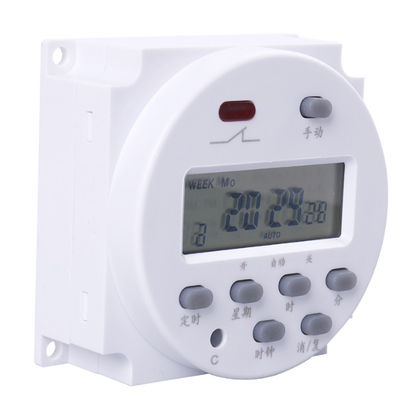

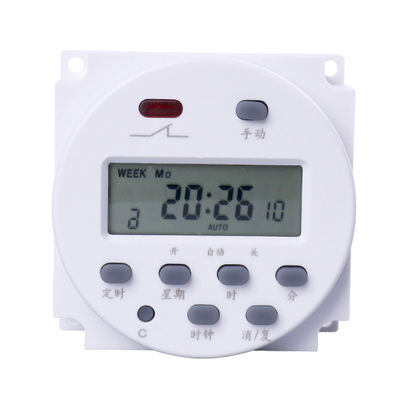

KMC-CN101A Din Rail Weekly Programmable Timer Switch
Product Introduction
The KMC-CN101A is a versatile din rail-mounted timer switch designed for precise time control in various electrical systems. With support for multiple voltage inputs (12V/24V/110V/220V) and a 16A contact capacity, it enables programmable scheduling for lighting, motors, and equipment. The timer features an LCD display for intuitive setup, a rechargeable internal battery for power failure memory (up to 180 days), and weekly programming capabilities, making it ideal for industrial, commercial, and residential automation applications.
Product Features
Wide Voltage Compatibility:
Supports input voltages: 12V, 24V, 110V, 220V AC/DC.
16A contact capacity suitable for high-load devices (e.g., motors, lighting systems).
Precision Timing:
Adjustable timing range: 1 minute to 168 hours (1 week).
Weekly programmable with up to 172 group settings for complex scheduling needs.
Reliable Memory & Power:
Rechargeable 1.2V/40mA battery preserves settings during power outages (180-day memory).
Power consumption: ≤2W for energy efficiency.
Durable Design:
Operating temperature: -10°C to 40°C for reliable performance in diverse environments.
Din rail mounting for easy installation in control panels.
Intelligent Control:
8-microprocessor control chip for stable performance and high anti-interference capability.
LCD display with intuitive interface for setting time, mode, and schedules.
Technical Specs at a Glance
| Rated Voltage |
12v /24v /110v /220v |
| Contact Capacity: |
16A |
| Power consumption: |
no more than 2w |
| Internal battery: |
1.2V/40mA (rechargeable batteries) |

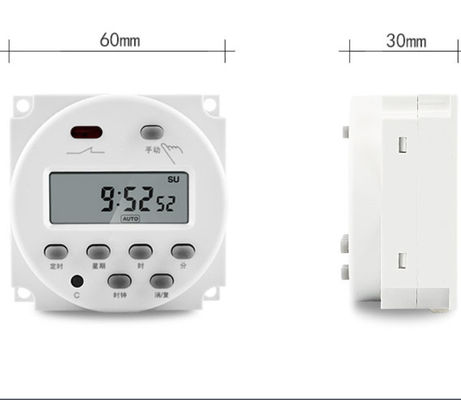

| Dimensions: |
62x62x32.5mm |
| Power failure memory: |
180days |
| Operate Temperature: |
-10 to +40 C |
