Name: Aegis Press Precision Room Monitor for Accurate Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: RSM-5-B
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Aegis Press Precision Room Monitor for Accurate Monitoring

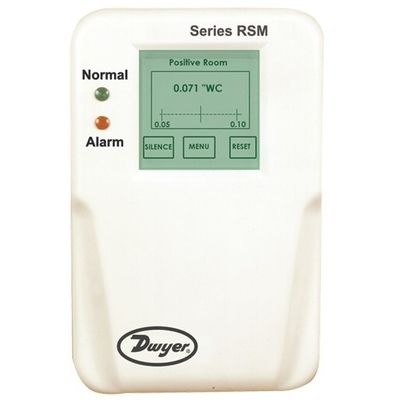

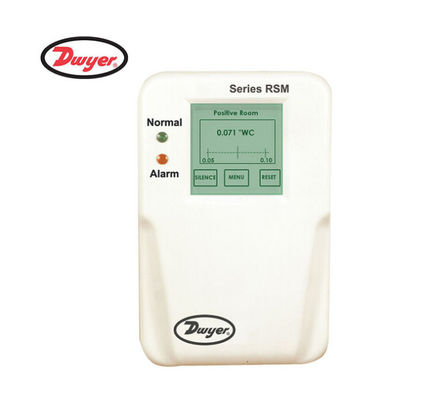

Aegis Press Precision Room Monitor

Accurate Monitoring Precision Room Monitor

Brand Name:

Dwyer

Certification:

Model Number:

RSM-5-B

Request A Quote

Aegis Press Precision Room Monitor for Accurate Monitoring

Product Details

Accuracy:

±0.5% FS.

Temperature Limits:

32 To 120°F (0 To 50°C).

Thermal Effects:

±0.03% FS/ °F (± 0.05% FS/ °C).

Service:

Air Or Nonconductive, Nonexplosive Gases.

Pressure Limits:

±15 In W.c. (±3.7 KPa).

Output Signal:

Selectable 4-20 MA (2-wire), 0-5 VDC (3-wire), Or 0-10 VDC (3-wire).

Highlight:

Aegis Press Precision Room Monitor

Accurate Monitoring Precision Room Monitor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS

Get Best Price

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer PrecisionPro 16G/8G/4G Temperature & Process Loop Controllers

Get Best Price

Dwyer MultiFunction LCT216 Digital Timer / Tachometer / Counter

Get Best Price

86--17719566736

Contact Now

Product Description

Aegis Press Precision Room Monitor for Accurate Monitoring

Key Specifications

Attribute	Value
Accuracy	±0.5% FS.
Temperature Limits	32 To 120°F (0 To 50°C).
Thermal Effects	±0.03% FS/ °F (± 0.05% FS/ °C).
Service	Air Or Nonconductive, Nonexplosive Gases.
Pressure Limits	±15 In W.c. (±3.7 KPa).
Output Signal	Selectable 4-20 MA (2-wire), 0-5 VDC (3-wire), Or 0-10 VDC (3-wire).

Product Overview

AegisPress PrecisionRoom Monitor is a revolutionary solution for low-pressure sensing, engineered to meet the most demanding requirements of critical low differential pressure applications. This state-of-the-art system sets a new standard for precision, reliability, and safety in pressure monitoring and alarming.

Designed in strict compliance with CDC guidelines, the AegisPress PrecisionRoom Monitor offers unparalleled versatility. It can be effortlessly configured to monitor both positive and negative pressures, making it ideal for safeguarding protected environments, especially hospital isolation rooms.

Equipped with an intuitive graphic user interface, the monitor simplifies management of crucial functions. Users can easily access real-time pressure data, adjust security settings, perform calibration tasks, and configure alarm parameters. Housed in a NEMA 1 (IP20) rated fire-retardant plastic enclosure, this monitor is built to withstand the rigors of indoor applications.

Key Applications

Hospital Isolation Wards: Maintains strict pressure control to prevent the spread of infectious diseases
Pharmaceutical Facilities: Ensures precise pressure conditions for high-quality medication production
Manufacturing Plants: Monitors pressure in critical production areas to optimize processes
Clean Rooms: Upholds ultra-clean environment requirements for sensitive operations
Research Labs: Enables accurate pressure monitoring for reliable scientific results
Animal Facilities: Creates safe and controlled environments for animal care and research

Model Specifications

Model	Description
RSM-1-A	Room status monitor, range ±0.05" w.c., excitation 24 VAC
RSM-1-B	Room status monitor, range ±0.05" w.c., excitation 120 VAC
RSM-2-A	Room status monitor, range ±0.1" w.c., excitation 24 VAC
RSM-2-B	Room status monitor, range ±0.1" w.c., excitation 120 VAC
RSM-3-A	Room status monitor, range ±0.25" w.c., excitation 24 VAC
RSM-3-B	Room status monitor, range ±0.25" w.c., excitation 120 VAC
RSM-4-A	Room status monitor, range ±0.5" w.c., excitation 24 VAC
RSM-4-B	Room status monitor, range ±0.5" w.c., excitation 120 VAC
RSM-5-A	Room status monitor, range ±1" w.c., excitation 24 VAC
RSM-5-B	Room status monitor, range ±1" w.c., excitation 120 VAC
RSM-6-A	Room status monitor, range ±2.5" w.c., excitation 24 VAC
RSM-6-B	Room status monitor, range ±2.5" w.c., excitation 120 VAC
