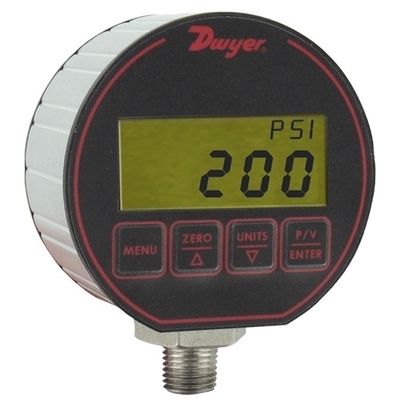

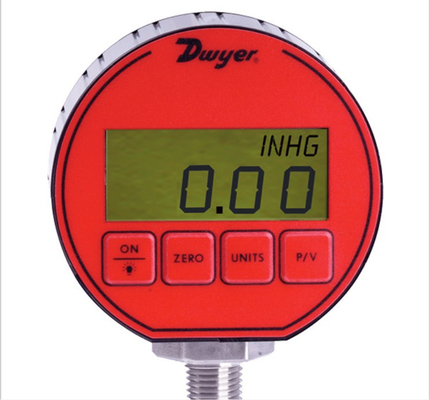

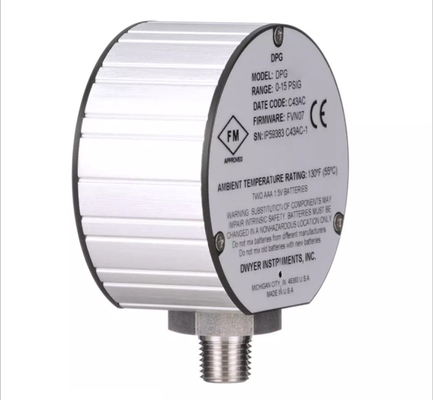

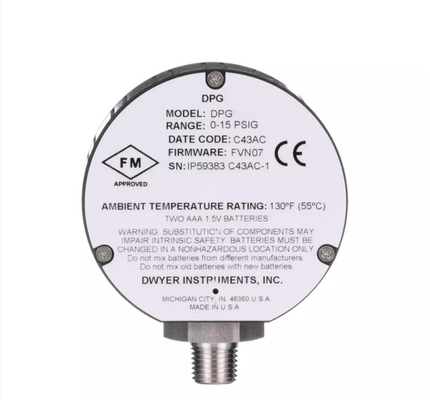

Dwyer DPG Digital Pressure Gauge with IP66 Aluminum Housing

Product Introduction

The Dwyer Series DPG Digital Pressure Gage is a high-accuracy measuring instrument designed to replace outdated analog gauges. Available with ±0.25% or ±0.5% full-scale accuracy, it features a 4-digit backlit display that eliminates parallax errors for precise readings. Housed in a NEMA 4X (IP66) aluminum enclosure, the gage is battery-powered with an auto-shutoff function (2000-hour battery life) and offers selectable engineering units, making it ideal for industrial pressure monitoring in harsh environments.

• High Accuracy: ±0.25% FS (DPG-100 series) or ±0.5% FS (DPG-000 series) for reliable measurements. Includes linearity, hysteresis, and repeatability at 70°F (21°C).
• Parallax-Free Display: 4-digit backlit LCD (0.425" H digits) for clear readings in low-light conditions. Eliminates reading errors common in analog gauges.
• Versatile Range & Units: Models cover -14.70 psi to 5000 psi, with selectable units (psi, kg/cm², bar, kPa, etc.). E.g., DPG-105 supports 0-100 psi with 11 engineering units.
• Rugged Construction: NEMA 4X (IP66) aluminum housing with polycarbonate cover, resistant to dust and water jets. Wetted materials: Type 316L stainless steel for corrosion resistance.
• Battery Efficiency: 2x AAA batteries (2000-hour life, 60 hours continuous use). Auto-shutoff (60 minutes) and low-battery indicator to conserve power.
• Easy Operation: Push-button zero/tare, peak/valley tracking, and unit conversion. Simple 4-button keypad, no complex menus.
• Safety Approvals: CE certified; FM approval for intrinsic safety (DPG-100 series) in hazardous areas (Class I, Div 1, Groups A-D).
