Name: KMC 770 Digital Paint Thickness Meter for Auto and Metal
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMC-770
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

KMC 770 Digital Paint Thickness Meter for Auto and Metal

digital paint thickness meter

auto paint thickness gauge

metal thickness measurement tool

Brand Name:

KACISE

Certification:

Model Number:

KMC-770

Request A Quote

Product Details

Brand Name:

KMC

Model:

KMC-770

Probe Triggering Force:

0.3~0.8N

Operating Temperature:

-10~50℃

Measuring Range:

0~2000μm

Product Name:

Coating Thickness Gauge

Highlight:

digital paint thickness meter

auto paint thickness gauge

metal thickness measurement tool

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

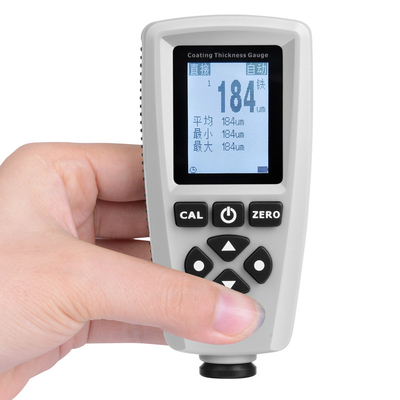

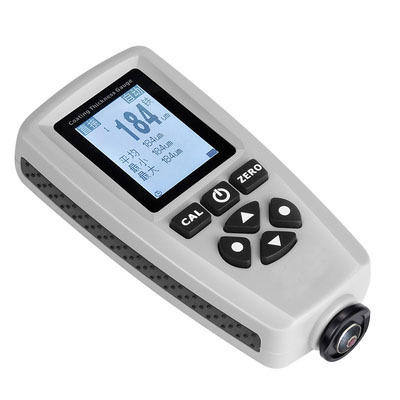

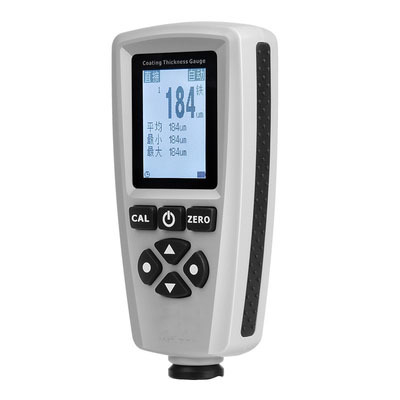

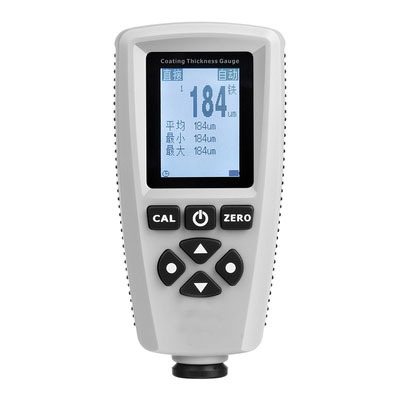

KMC 770 Digital Auto Car Paint Thickness Meter

The KMC 770 is a high-precision coating thickness tester designed for non-destructive measurement of paint, galvanized layers, and plastic films on metal surfaces. It uses advanced technology to automatically identify ferromagnetic (iron, nickel, cobalt) and non-ferromagnetic (aluminum, copper) substrates, making it ideal for quality control in automotive, manufacturing, and chemical industries.

Key Features

Dual-Probe Technology: Ruby-tipped probe automatically identifies iron/aluminum substrates for seamless switching between measurements
High Precision & Speed: ±(2.5% + 1μm) accuracy with a measurement speed of 2 times/second
Wide Measurement Range: 0-2000μm suitable for both thin films and thick coatings
Environment Resistance: Operates reliably in -10°C to 50°C with red screen warning for out-of-range measurements
User-Friendly Design: Auto-shutoff, reversible screen, compact size (114×53×25mm) and lightweight (80g)
Data Management: Store and transfer measurement data to computers for analysis and reporting

Technical Specifications

Attribute	Value
Brand Name	KMC
Model	KMC-770
Measuring Range	0~2000μm
Accuracy	±(2.5%+1μm)
Probe Triggering Force	0.3~0.8N
Minimum Measurement Area	Diameter 15 mm
Dimensions	114×53×25mm
Weight	80g
Operating Temperature	-10~50℃
Warranty	1 year

Ideal Applications

Perfect for second-hand car inspections, automotive quality control, manufacturing process verification, material testing, and commodity inspection applications where precise coating thickness measurement is critical.
