Name: Dwyer MSXP-W10-PA Differential Pressure Transmitter 10-36 VDC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: MSXP-W10-PA
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer MSXP-W10-PA Differential Pressure Transmitter 10-36 VDC

Dwyer differential pressure transmitter

MSXP-W10-PA pressure sensor

10-36 VDC pressure transmitter

Brand Name:

DWYER

Certification:

Model Number:

MSXP-W10-PA

Request A Quote

Product Details

Power Requirements:

10-36 VDC (2-wire), 17-36 VDC Or Isolated 21.6-33 VAC (3-wire)

Pressure Range:

-125 TO 125 Pa

Display:

4 Digit LCD

Temperature Limits:

-4 To 158°F (-20 To 70°C)

Current Output:

0-1250 Ω Max

Service:

Air And Non-combustible, Compatible Gases

Highlight:

Dwyer differential pressure transmitter

MSXP-W10-PA pressure sensor

10-36 VDC pressure transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

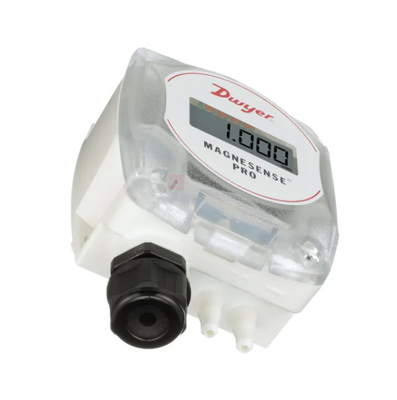

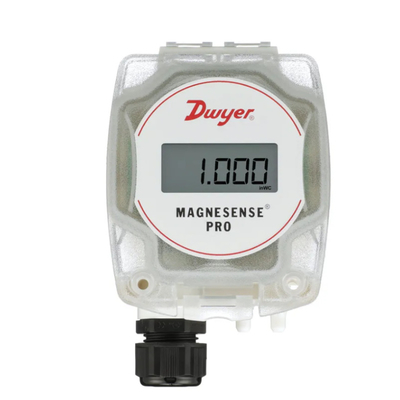

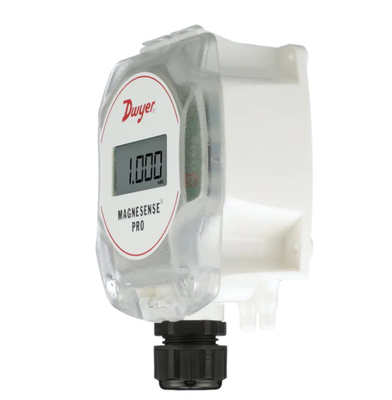

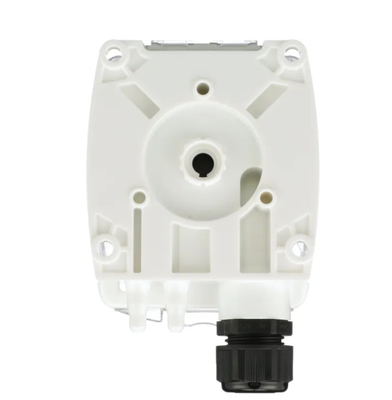

Dwyer MSXP-W10-PA Magnesense Pro Differential Pressure Transmitter

Product Overview

The Dwyer MSXP-W10-PA Magnesense Pro Differential Pressure Transmitter is a high-performance professional device designed for monitoring differential pressure, with expandable capabilities for air velocity and volumetric flow measurements. Engineered to meet rigorous industry standards, it delivers exceptional stability for critical applications including pharmaceutical clean rooms, semiconductor facilities, air handler filter monitoring, and duct static pressure control.

Key Attributes

Power Requirements	10-36 VDC (2-wire), 17-36 VDC Or Isolated 21.6-33 VAC (3-wire)
Pressure Range	-125 TO 125 Pa
Display	4 Digit LCD
Temperature Limits	-4 To 158°F (-20 To 70°C)
Current Output	0-1250 Ω Max
Service	Air And Non-combustible, Compatible Gases

Advanced Features

Monitors differential pressure with expandable functionality for air velocity and volumetric flow calculations via square root extraction
Unidirectional pressure range covering 60, 75, 100, 125 PA, configurable for precise measurement
Universal current/voltage outputs (4-20 mA 2-wire; 0-10 V or 0-5 V selectable 3-wire) for flexible system integration
Flip-lid housing design for easy wiring access and simplified maintenance
Tamper-resistant cover with innovative PCB shielding for protection during installation
Includes liquid-tight cable gland fitting to prevent moisture ingress
Tool-less terminal block for 16-26 AWG wiring for quick, error-free connections
NEMA 4X (IP66) enclosure rating with UL 2043 (Plenum) and UL94 V-0 certifications

Technical Specifications

Service: Air and non-combustible, compatible gases
Accuracy: ±.5% FSO for all ranges except unidirectional .5 in. @ ±1% FSO
Stability: ±1% FSO/year
Pressure Limits: Ranges 0 and 1: 3.6 psi max operation, 6 psi burst; Ranges 2, 3 and 4: 6 psi max operation, 6 psi burst
Output Signals: 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire)
Response Time: Instantaneous (default) or 3 s (selectable)
Electrical Connections: 4-wire removable European style terminal block for 16 to 26 AWG
Enclosure Rating: NEMA 4X (IP66), UL 2043 (Plenum), UL94 V-0
Weight: 8.0 oz (230 g)
Agency Approvals: CE
