Name: Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: MSX-W20-PA
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter 24VDC

Dwyer bidirectional pressure transmitter 24VDC

MSX-W20-PA differential pressure sensor

precision pressure transmitter 24VDC

Brand Name:

DWYER

Certification:

Model Number:

MSX-W20-PA

Request A Quote

Product Details

Power Supply:

24VDC

Pressure Range:

-125 TO 125 Pa

Display:

4 Digit LCD

Working Temperature:

-4 To 158°F (-20 To 70°C)

Current Output:

0-1250 Ω Max

Highlight:

MSX-W20-PA Digital Pressure Gauge, LCD Display Digital Pressure Manometer, 4 Digit Industrial Pressure Gauge

Highlight:

Dwyer bidirectional pressure transmitter 24VDC

MSX-W20-PA differential pressure sensor

precision pressure transmitter 24VDC

Payment & Shipping Terms

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

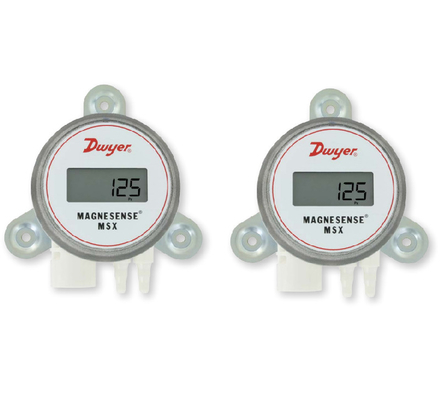

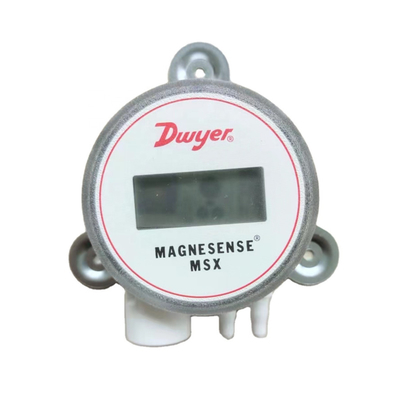

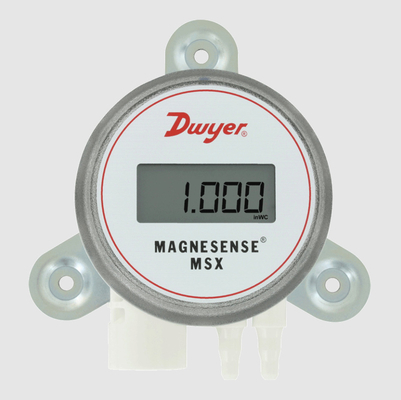

Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter

MSX-W20-PA Digital Pressure Gauge with LCD Display, 4 Digit Industrial Pressure Manometer for precise differential pressure measurement in industrial applications.

Key Specifications

Power Supply	24VDC
Pressure Range	-125 to 125 Pa
Display	4 Digit LCD
Working Temperature	-4 to 158°F (-20 to 70°C)
Current Output	0-1250 Ω Max

Product Overview

The Dwyer MSX-W20-PA Bidirectional Differential Pressure Transmitter is a precision instrument from the Series MSX Magnesense® lineup, combining the stability of Series MS2 Magnesense® II technology with enhanced versatility. Designed for building control systems, it offers simplified configuration with multiple pressure options and bidirectional functionality for critical environments.

Key Features

Bidirectional measurement capability for both positive and negative pressure ranges
32 configurable pressure ranges in Pa, mm w.c., and in w.c. units
Linear pressure output or linear velocity output via square root extraction
Dual voltage and milliamp output signals for system control and verification
Streamlined ordering process with pre-configured options
Wall-mount design ideal for clean rooms and commercial buildings

Technical Specifications

Warranty	1 year
Customized Support	OEM, ODM
Origin	USA
Brand	Dwyer
Model Number	MSX-W20-PA
Output Signal	4~20mA
Electrical Connections	4-wire
Agency Approvals	CE
