Product Description

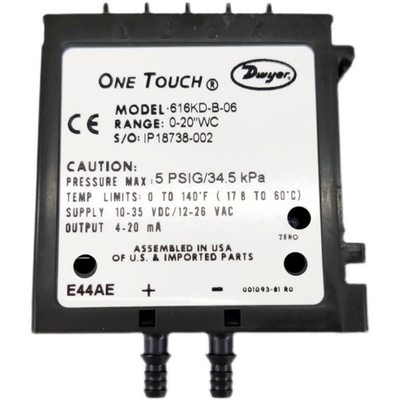

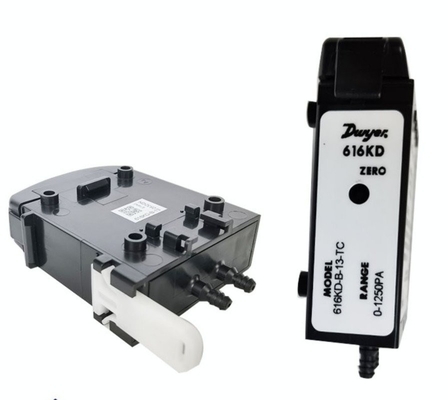

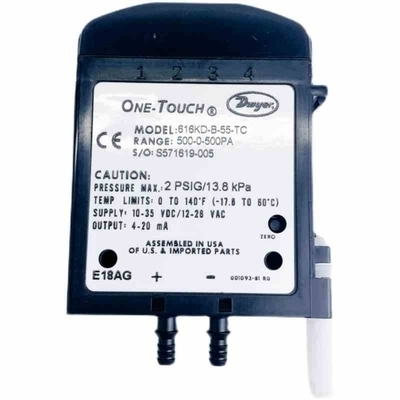

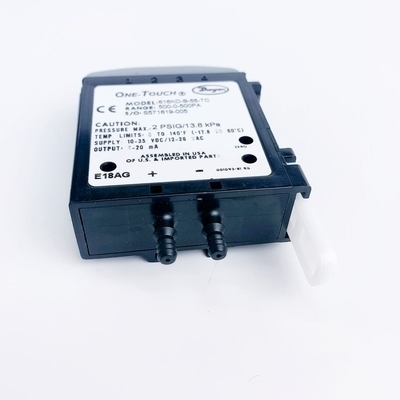

Dwyer 616KD Series 4-20mA Differential Pressure Transmitter

Attribute	Value
Warranty	1 Year
Output Signal	4-20mA
Working Current	3A
Output Voltage	24V
Customized Support	OEM, ODM
Shell Protection	NEMA1 (IP20)

Product Overview

The Dwyer 616KD Series 4-20mA Differential Pressure Transmitter is a high-performance instrument designed for precise measurement of differential pressure in air, non-combustible gases, and compatible gases.

Key Features

One-Touch Calibration: Zero and span calibration at the push of a button, eliminating the need for traditional potentiometer adjustments or additional tools.
Multiple Accuracy Grades: Available in ±0.25% FS, ±1% FS, and ±2% FS versions to meet varying precision requirements.
Stable Performance: ±1% FS/year stability ensures consistent measurement accuracy over time.
Flexible Power and Output: Supports 4-20mA output with 10-35VDC or 12-26VAC power supply, plus field-selectable voltage outputs.
Compact Design: Cost-effective solution ideal for OEM applications without compromising performance.

Technical Specifications

Model: Dwyer 616KD Series

Medium: Air, non-combustible gases, compatible gases

Accuracy: ±0.25% FS (616KD-A), ±1% FS (616KD-B), ±2% FS (616KD)

Operating Temperature: -17.8°C to 60°C

Pressure Range: 2 psig (for ranges 5in w.c. or lower), 5 psig (for ranges 10-40in w.c.)

Output Options: 4-20mA, or field-selectable 0-10V, 0-5V, 2-10V, 1-5V

Power Supply: 10-35VDC (2-wire) or 12-26VAC (4-wire) for 4-20mA output

Electrical Connection: Screw terminal

Process Connection: Compatible with 1/8" and 3/16" ID rubber or plastic pipes

Enclosure Protection: NEMA 1 (IP20)

Typical Applications

Air handling unit filter monitoring HVAC duct pressure measurement VAV system control Pharmaceutical equipment Textile machinery Industrial process control
