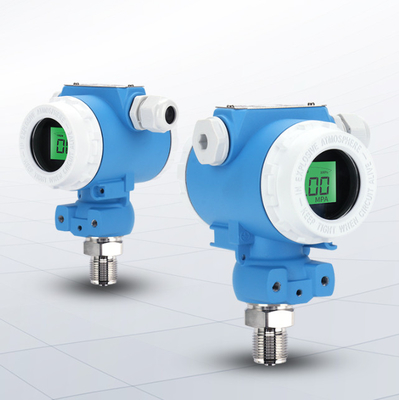

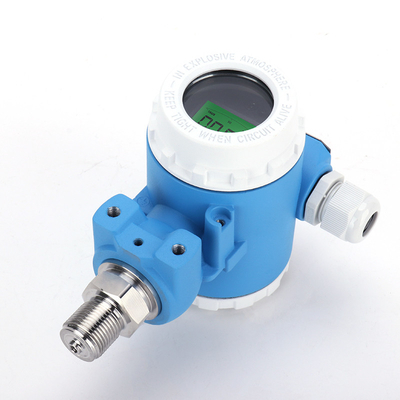

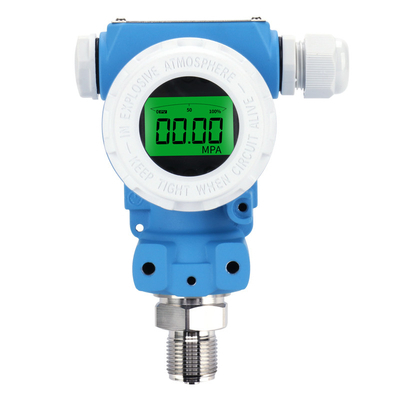

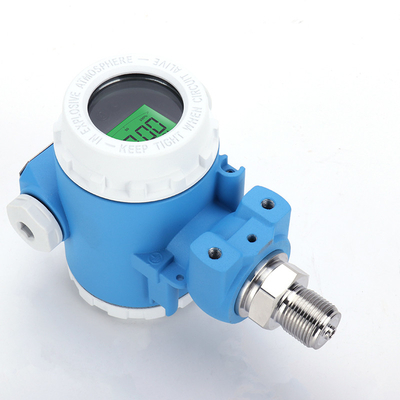

Name: Explosion-Proof Pressure Transmitter with LCD Display 4-20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMC-800
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Explosion-Proof Pressure Transmitter with LCD Display 4-20mA Output

explosion-proof pressure transmitter LCD

4-20mA output pressure sensor

precision pressure transmitter LCD display

Brand Name:

KACISE

Certification:

Model Number:

KMC-800

Request A Quote

Explosion-Proof Pressure Transmitter with LCD Display 4-20mA Output

Product Details

Product Name:

Precision Pressure Transmitter

Voltage Rang:

15~36VDC

Storage Temperature:

-40℃~+125℃

Measured Medium:

Liquid/oil Compatible With 316 Stainless Steel

Authentication Protection:

IP65

Highlight:

explosion-proof pressure transmitter LCD

4-20mA output pressure sensor

precision pressure transmitter LCD display

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Get Best Price

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Get Best Price

Contact Now

Product Description

Explosion-Proof Pressure Transmitter with LCD Display 4-20mA Output

Product Attributes

Attribute	Value
Product Name	Precision Pressure Transmitter
Voltage Range	15~36VDC
Storage Temperature	-40℃~+125℃
Measured Medium	Liquid/oil Compatible With 316 Stainless Steel
Authentication Protection	IP65

Product Description

OEM MC LCD Display Explosion-Proof Pressure Transmitter (4-20mA Output)

Product Introduction

The OEM MC LCD Display Explosion-Proof Pressure Transmitter is a high-performance instrument designed for precise pressure measurement of water, oil, air, and other compatible media. Equipped with an LCD high-definition digital display, it provides real-time pressure readings for convenient on-site monitoring. With explosion-proof capabilities, IP65 protection, and excellent stability, it is suitable for diverse industrial environments, including process control, aerospace, automotive, medical equipment, and HVAC systems, ensuring reliable performance in harsh conditions.

Features

High Precision & Stability: Offers accuracy classes of 0.25%FS and 0.5%FS, with long-term stability of 0.2%FS, ensuring consistent and reliable pressure measurement for critical applications.
LCD HD Display: Integrated high-definition digital display provides clear, real-time pressure readings, enabling quick on-site observation without additional equipment.
Explosion-Proof Design: Suitable for hazardous environments where flammable gases or liquids are present, enhancing safety in industrial settings such as oil and gas or chemical processing.
IP65 Protection: Upgraded IP65 protection rating safeguards against dust and low-pressure water jets, ensuring durability in harsh or outdoor environments.
Strong Anti-Interference: Resists electromagnetic interference, maintaining accurate measurements even in complex industrial electrical environments.
Corrosion Resistance: Constructed with materials that withstand corrosion from water, oil, and other media, extending service life in aggressive conditions.
Easy Installation: Features an M20*1.5 installation interface, simplifying mounting and integration into existing systems.
Overload Protection: Built-in overload protection structure ensures reliable performance even under excessive pressure, reducing damage risks.

Technical Specifications

Specification	Value
Product name	MC LCD display differential pressure transmitter
Precision	0.25%FS 0.5%FS
Stability	0.2%FS
Output	4-20MA Two linear
Power supply	12-24VDC
Communication	HART communication protocol
Installation interface	M20*1.5
Operating temperature	-10℃~+80℃
Authentication protection	IP65
