Rosemount 3051T In-Line Pressure Transmitter 4-20 mA HART

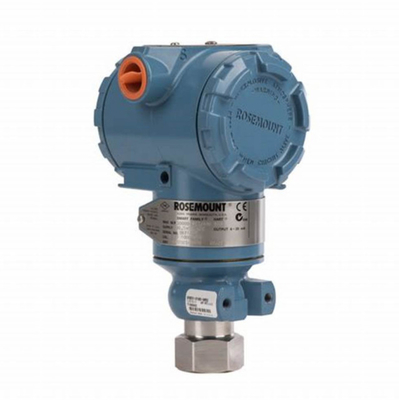

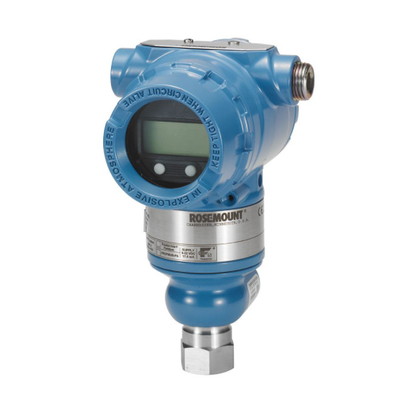

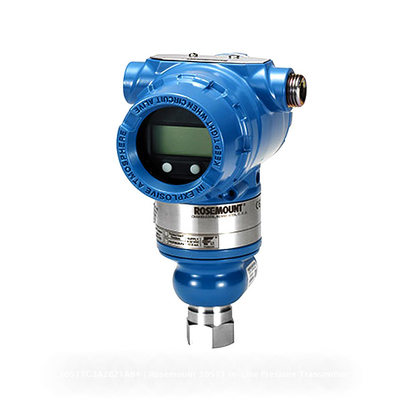

Rosemount 3051T In-Line Pressure Transmitter (4-20 mA with HART Protocol)

The Rosemount 3051T In-Line Pressure Transmitter (Model: 3051TG3A2B21AB4) is an industry-standard device designed for precise gage pressure measurement in industrial processes. Its compact in-line design allows direct connection to the process, enabling quick, cost-effective installation. Equipped with advanced features like Power Advisory diagnostics and a Local Operator Interface, it ensures reliable performance and easy configuration, making it ideal for applications requiring accurate pressure monitoring in harsh environments.

• Industry-Leading Reliability: Built on proven sensor and electronics technologies with a single isolator design, delivering rugged performance for gage pressure measurements from 1 to 600 bar (up to 20,000 psig).
• Easy Installation: In-line compact design connects directly to the process, reducing installation time and costs. Process connections include flanges with 7/16-20 UNF and 1/4-18 NPT female threads on both sides; electrical connection via M20x1.5 cable entry.
• Advanced Diagnostics: Power Advisory (Option Code DA0) proactively detects degraded electrical loop integrity issues, while Loop Integrity diagnostics minimize downtime through early fault detection.
• User-Friendly Interface: Local Operator Interface (Option Code M4) with straightforward menus and built-in configuration buttons simplifies on-site setup and monitoring.
• Safety Compliance: SIL 2/3 certified to IEC 61508 by an independent third party, with NSF, NACE®, and hazardous location approvals, ensuring suitability for safety-critical applications.
• Flexible Communication: Supports 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, and 1-5 V Low Power HART protocols, enabling seamless integration into diverse control systems.
• Wide Rangedown: Up to 150:1 rangedown provides flexibility to adapt to varying process pressures, ensuring accuracy even in low-range measurements.
